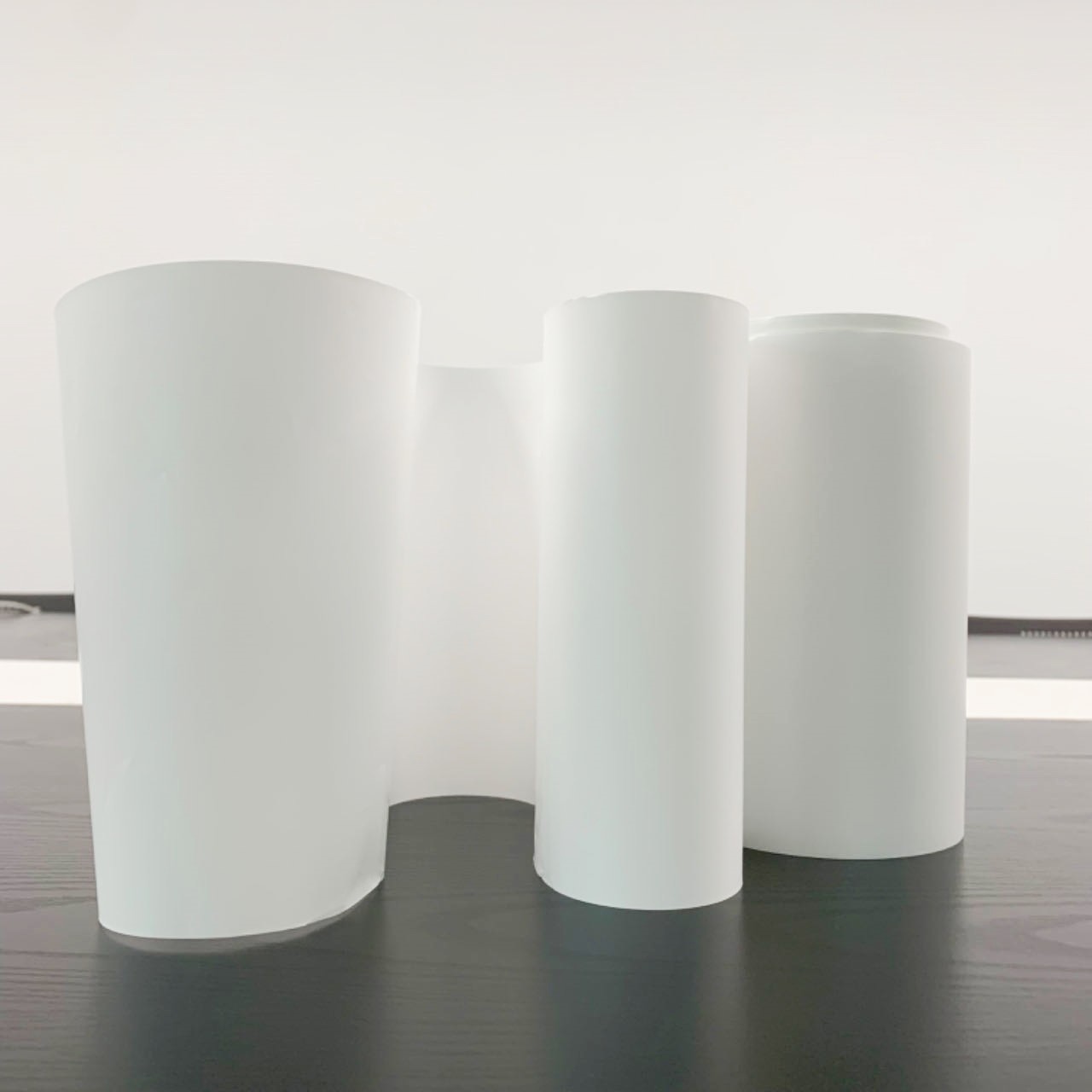

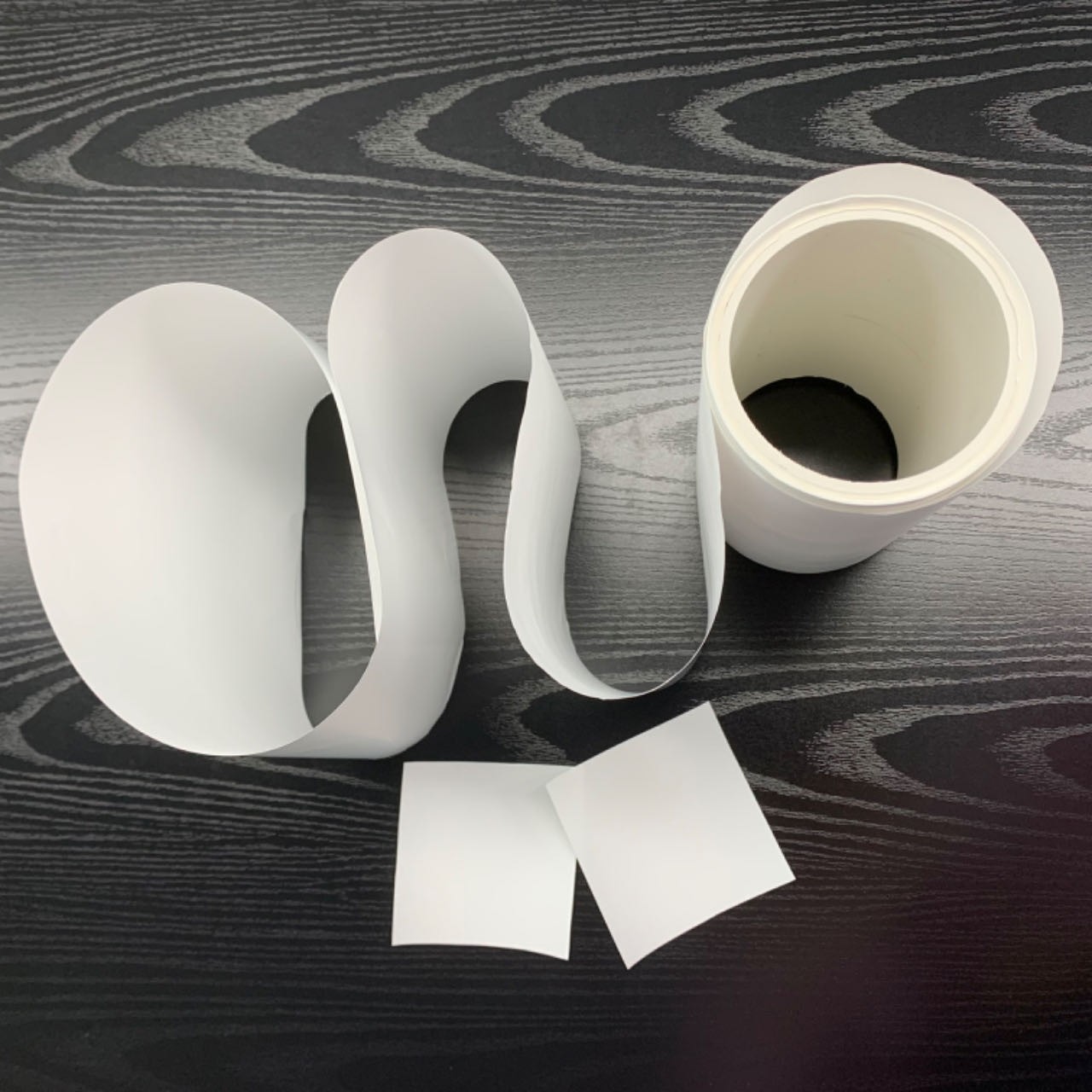

0.22µm Nylon Membrane Filters Hydrophilic Polyester Reinforced

Product Details:
Place of Origin: China
Brand Name: No
Certification: ISO9001
Model Number: XN-NY
Payment & Shipping Terms:
Minimum Order Quantity: 600 Square Meters
Price: $10 to $18 per square meter
Packaging Details: Roll packaging or standard export carton packaging
Delivery Time: 15 to 30 days
Payment Terms: L/C, T/T
  • Detail Information
  • Product Description

Detail Information

Product Name: Nylon Membrane Filter Material: Nylon (Polyamide )
Pore Size: 0.1μm/0.22μm/0.45μm/0.65μm/0.8μm/1.2μm/3μm/5μm Color: White
Feature: High Thermal Resistance Wettability: Hydrophilic
Chemical Resistance: Excellent MOQ: 600M2
Highlight:

Nylon Membrane Hydrophilic

,

0.22 µm Nylon Membrane

Product Description



Nylon Membrane Filter from XINNA is supported by an inert polyester support web. The internal support of the nylon membrane gives it added dimensional strength and stability, which prevents it from cracking, tearing, curling, and breaking when subjected to further agressive batch processing or sample handling. One of the unique features of Nylon Filter Membrane is that it is a naturally hydrophilic membrane, it can wet out evenly and retain its superior strength during use in general filtration or purification of medical drug solutons. It does not require wetting agents that can interfere with biological processes. The absence of such agents makes it ideal for use in applications where biological safety is a priority. Nylon membranes also have broad chemical compatibility and low level of extractables, making them idea for sterilization and filtration of various aqueous solutions, organic solvents, buffers and culture medias.



The nylon membranes from us are non-sterile , autoclavable at 121°C, and available in

  • cut-to-size circles for laboratory filtrations
  • custom rolls for our customers to further process and integrate them into medical filters, syringe filters, vacuum filter flasks etc.



Specifications

Product name Nylon Membrane filter
Material Nylon (Polyamide )
Pore Size 0.1μm/0.22μm/0.45μm/0.65μm/0.8μm/1.2μm/3μm/5μm
Color White
Bubble Point ≥0.31MPa
Thickness 90 - 140um
PH Range 6-13
Flow Rate@23 ℃, H2O ≥ 4 mL/min/cm2@1 bar



Application

The nylon membranes we manufacture are well-suited for medical, healthcare and laboratory filtration applications. Our customers order them from us to make medical devices, or use them for biological assay preparations and HPLC solvents clarifications, they are widely used in

  • IV Filters
  • Syringe Filters
  • Particle retention
  • HPLC prefiltration
  • Organic solvents diagnosis.
