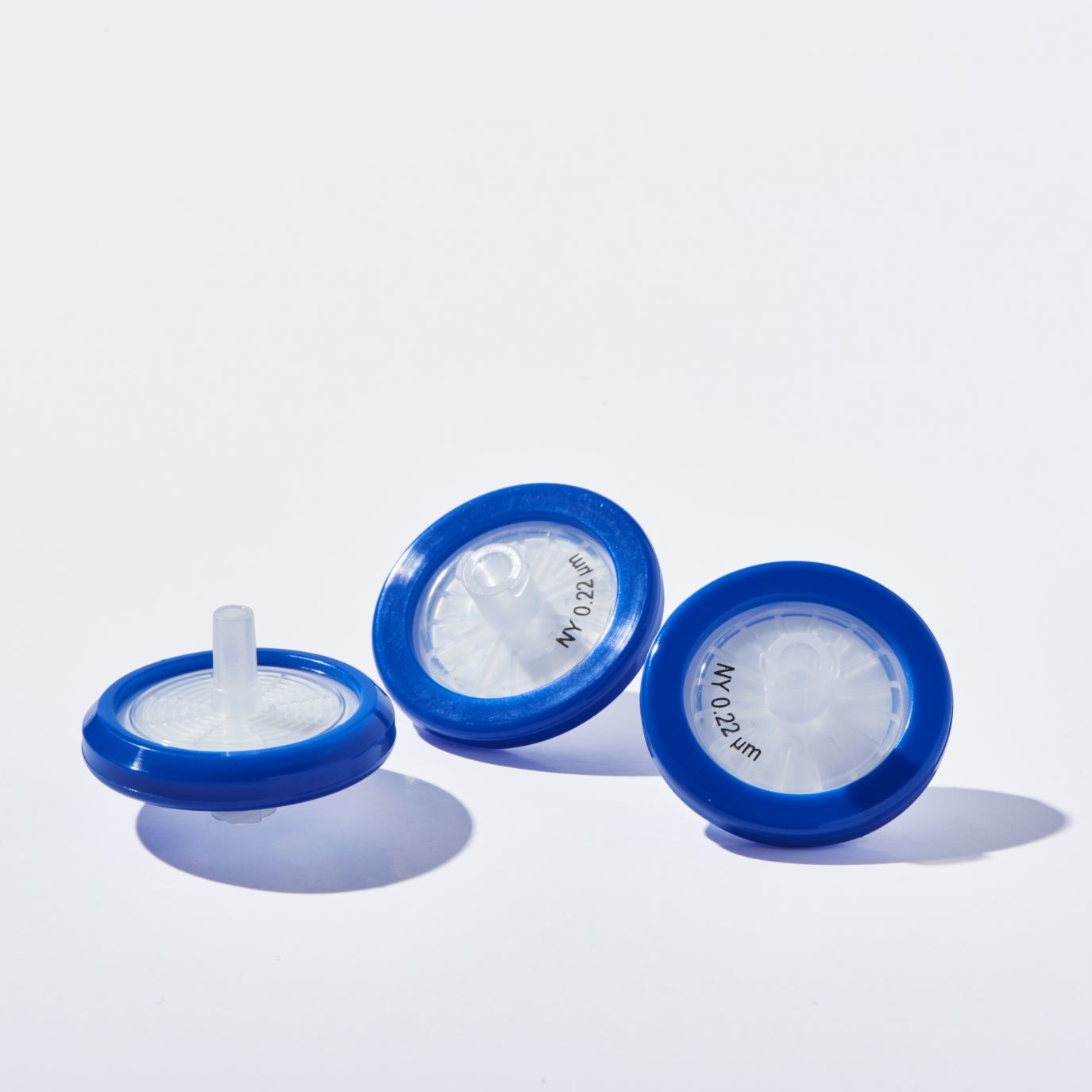

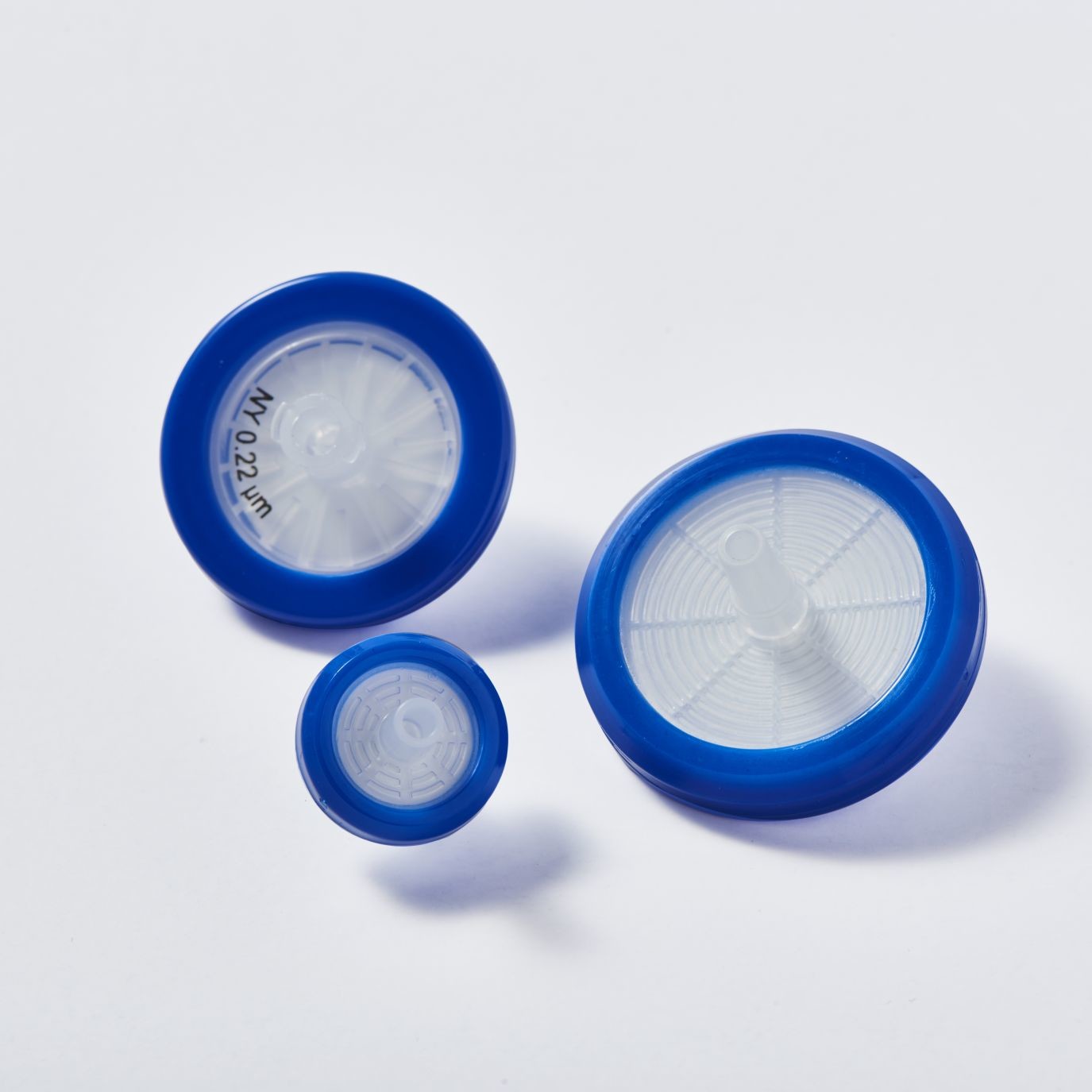

Hydrophilic Nylon Micropore Laboratory Syringe Filters 0.22μm Pore Size φ13mm

Product Details:
Place of Origin: China
Brand Name: no
Certification: ISO9001
Model Number: XN-NYSF01
Payment & Shipping Terms:
Minimum Order Quantity: 100packs(100pcs/pack)
Price: $7.00 to $90.00 per pack
Packaging Details: 100 pcs/pack standard export carton packaging or custom
Delivery Time: 15 to 30 days
Payment Terms: L/C, T/T
  • Detail Information
  • Product Description

Detail Information

Product Name: Nylon Membrane Syringe Filter Diameter: 13mm
Filter Medium: Nylon Pore Size: 0.22μm
Housing: Polypropylene Max Operating Temperature: 60℃(140℉)
Sterilization: ETO/Non-sterile OEM: Available
Highlight:

0.22 μm Laboratory Syringe Filters

,

Nylon Laboratory Syringe Filters

,

Micropore 0.22 μm Syringe Filter

Product Description

Nylon syringe filters are typically composed of naturally hydrophilic nylon membranes and ultrasonic-welded PP or ABS housing.These syringe filters are mostly used for handling aqueous solutions such as alkaline or organic solvent filtration of HPLC samples as they have a strong chemical resistance to alkaline samples, with a pH compatibility range of 3-14. It is one of the most widely used microporous membrane filters, belonging to the end filtration membrane with a pore size of 0.22-5.0um. It is a filter that can be used to remove particles from the solution.



The nylon syringe filters from us can be made in your nominated color, either in sterile single-packaging or non-sterile barrel packaging. These filters are ultrasonic welded to guarantee no liquid or gas leakage while being subjected to high pressure. No membrane replacement or filter cleaning is required, the single-use syringe filters are a great help to lab staffs freeing them from the trivial and time-consuming preparation, and therefore are widely embraced by laboratories across the world.



The Nylon syringe filters we produce contains high performance hydrophilic Nylon membrane. And the Nylon membranes are manufactured in our class 100,000 clean rooms, while the body of the syringe filters are manufactured just a few miles away in our new Injection Molding workshop.



Specifications Available

Pore Size

0.22μm

Syringe filter Diameter

13mm

Minimum Order Quantity

 10000pcs/ 100packs

Water flow of φ13mm

<10ml

Bubble point of 0.22µm pore size

340KPa


Features

  • Hydrophilic membrane

  • Very low adsorption for pharmaceuticals and proteins

  • Good stability against organic acids and bases

  • For aqueous and slightly organic liquids with higher flow rates

  • Mechanically very stable



Applications

  • HPLC/ GC-MS small volume sample preparation, purification and prefiltering.

  • Liquid sterilization

  • Biological products preparation.

  • Culture medium, microbial medium, buffers, additives and drugs sample filtration.

  • Strong corrosive solvents purification.

Hydrophilic Nylon Micropore Laboratory Syringe Filters 0.22μm Pore Size φ13mm 0
