Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | No |
| Certification: | ISO9001 |
| Model Number: | XNGL |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 12000 pieces |
| Price: | $0.3 - $1 per piece |
| Packaging Details: | 100 pcs/pack standard export carton packaging or custom |
| Delivery Time: | 15 to 30 days |
| Payment Terms: | L/C, T/T |
|
Detail Information |
|||
| Product Name: | Air Vent Filter | Diameter: | 50mm Or Custom |
|---|---|---|---|
| Filter Media: | PTFE Membrane | Housing Material: | PP Or ABS |
| Color: | Natural Or Custom | Application: | Air Venting And Gas Filtration |
| Filter Efficiency: | Up To 99% | OEM: | Aavailable |
| Highlight: | 0.22µm Bacterial Vent Filter,Sterilized Bacterial Vent Filter,Sterilized Inline Disc Filter |
||
Product Description

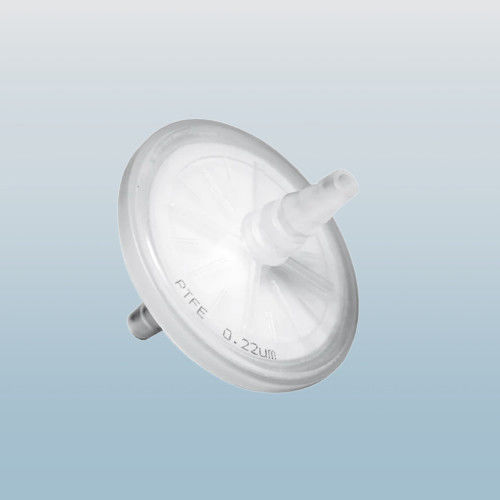

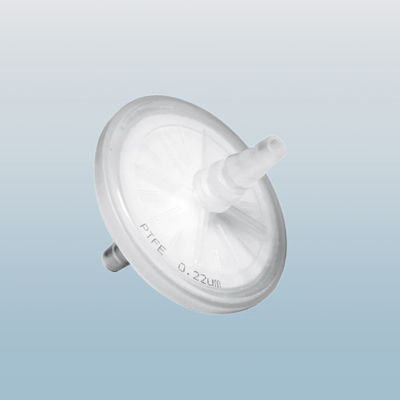

0.22µm Sterilized Venting Disc Filter with Hydrophobic Membrane
Sterilized Air Vent Filter with Hydrophobic Membrane is an effective solution for degassing and filtering applications in various industries, including biotechnology, pharmaceuticals, and chemical processing. The 0.22µm Pore Size Sterilized Air Filter integrated with hydrophobic membrane is a versatile venting disc filter designed for degassing and providing excellent protection against bacteria by eliminating exposure to aerosol contamination. It features a hydrophobic PTFE membrane and PP housing, making it suitable for a range of applications such as venting and degassing fermentation tanks and culture vessels, drying or sterilizing gases, and cleaning analytical solvents and reagents. The filter is designed to withstand high temperatures and autoclaving cycles, with a maximum capacity of 30 cycles at 121°C for 20 minutes or 3 cycles at 134°C for 30 minutes. This makes it ideal for high temperature processing applications. In addition to its robustness, the filter also boasts a 0.22µm pore size, which allows for efficient filtration of small particles and gases. The hydrophobic membrane further enhances the filter's performance by preventing the adhesion of particles to the surface, ensuring continuous and reliable operation over time.
Specifications
| Diameter | 50mm or Custom |
| Membrane Filter Media | Hydrophobic PTFE (GF/ PVDF) |
| Pore Size | 0.22, 0.45,1.2 µm optional |
| Housing | Polypropylene / ABS ultrasonically welded |
| Sterilization | ETO or non-sterile |
| Air flow Rate | ≥25 L/min at 1 bar ( 0.22 µm ) |
The antibacterial air vent filters are manufactured in our ISO 9001 certified facilities, ensuring safety and high quality in product performance. These filters are ready-to-use and offer cost-effective solutions for a wide range of applications. We understand that every customer has unique requirements, which is why we offer an OEM service to accommodate your specific needs. If you have any special requests regarding pore sizes or colors, we can customize the filters to meet your requirements. Our commitment to quality and customer satisfaction sets us apart from other manufacturers. By choosing our bacterial air vent filters, you can trust that you are getting a high-quality product that meets industry standards. Contact us today to learn more about our products and services, or request a quote for your custom needs.
Applications
