Hydrophobic PVDF Membrane Disc Filter 0.45um Pore Size Hydrophilic Treatment

Hydrophobic PVDF Membrane Disc Filter 0.45um Pore Size Hydrophilic Treatment

Product Details:
Place of Origin:	China
Brand Name:	No
Certification:	ISO9001
Model Number:	XN-PVDF
Payment & Shipping Terms:
Minimum Order Quantity:	2000pieces(50pcs per pack)
Price:	USD70.00~45.00 per pack
Packaging Details:	50pcs per pack or customized
Delivery Time:	30 days
Payment Terms:	L/C, T/T

Contact Now

Detail Information
Product Description

Detail Information
Product Name:	Hydrophobic PVDF Membrane Disc Filter 0.45μm Pore Size	Pore Size:	0.22µm, 0.45μm
Wettability:	Hydrophobic Or Customized Hydrophilic	Diameter:	47mm/50mm/60mm/90mm Or Customized
Membrane Format:	Discs (Circles)	Application:	Microfiltration, Solvent Filtration
MOQ:	2000pieces
Highlight:	Microfiltration Membrane Filter Disc , Hydrophilic Treatment Membrane Disc Filter , Hydrophobic PVDF Membrane Disc Filter

Product Description

Hydrophobic PVDF Membrane Disc Filter 0.45μm Pore Size Strong Corrosion Resistance

PVDF membrane disc filter is is a new type of precision filtration membrane that can be used in liquid sterilization, particle removal filtration, gas dehumidification, sterilization, and dust removal filtration. It is commonly used for purification during sterilizing or clarifying procedures. PVDF Membrane Disc Filter is a crucial step in ensuring the purity and accuracy of downstream mass spectrometric analysis. This process involves using a membrane disc filter to remove any contaminating particles from the solvents and mobile phases, which can significantly extend the lifespan of the column and prevent system failure. By removing these impurities, samples become pure and free from any unwanted substances that could otherwise interfere with the analysis.

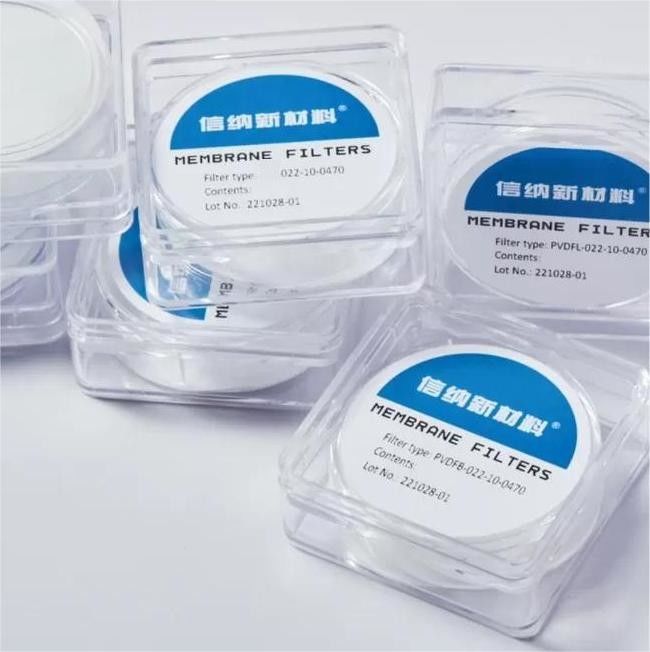

PVDF Membrane Disc Filters from XINNA are plain white filters made of premium polyvinylidene fluoride materials. They are naturally hydrophobic and has excellent chemical compatibility, including corrosion resistance, oxidation resistance, and heat resistance, resistant to strong solvents such as DMSO, THF, DMF, and dichloromethane, which make the PVDF disc filters suitable for a wide range of experimental conditions. . Meanwhile,we are highly specialized in processing them into hydrophilic type to cater to more diverse needs. It provides high flow rates and throughput, which allows for efficient sample processing.

Features of Hydrophilic PVDF Membrane Disc Filters

Natually hydrophobic
Modified hydrophilic
High flow rates and throughput
High temperature resistance
Low extractables
Very low protein binding to minimize interaction with the sample and maximize recover
Excellent mechanical properties

Specification :

Hydrophobic PVDF membrane

NO.	PORE SIZE (μm)	TEST SOLUTIONS	BUBBLLE POINT (MPa)/Hydrophobic	FLOW RATE(ml/min/cm²)Hydrophobic	THICKNESS (μm)
1	0.05	60%IPA	0.25	1	100-300
2	0.10		0.15	2
3	0.20		0.12	5
4	0.45		0.05	25
5	0.60-5.00		Standard	Standard

Hydrophilic PVDF membrane

NO.	PORE SIZE (μm)	TEST SOLUTIONS	BUBBLLE POINT (MPa)/Hydrophilic	FLOW RATE(ml/min/cm²)Hydrophilic	THICKNESS (μm)
1	0.05	Pure Water	0.45	1	100-300
2	0.10		0.33	2
3	0.20		0.26	6
4	0.45		0.15	25
5	0.60-5.00		Standard	Standard

Applications:

Suitable for production processes in medical, food and beverage, as well as drinking water, microelectronics, fine chemical industries, etc.

Hydrophobic PVDF Membrane Disc Filter 0.45um Pore Size Hydrophilic Treatment 0
