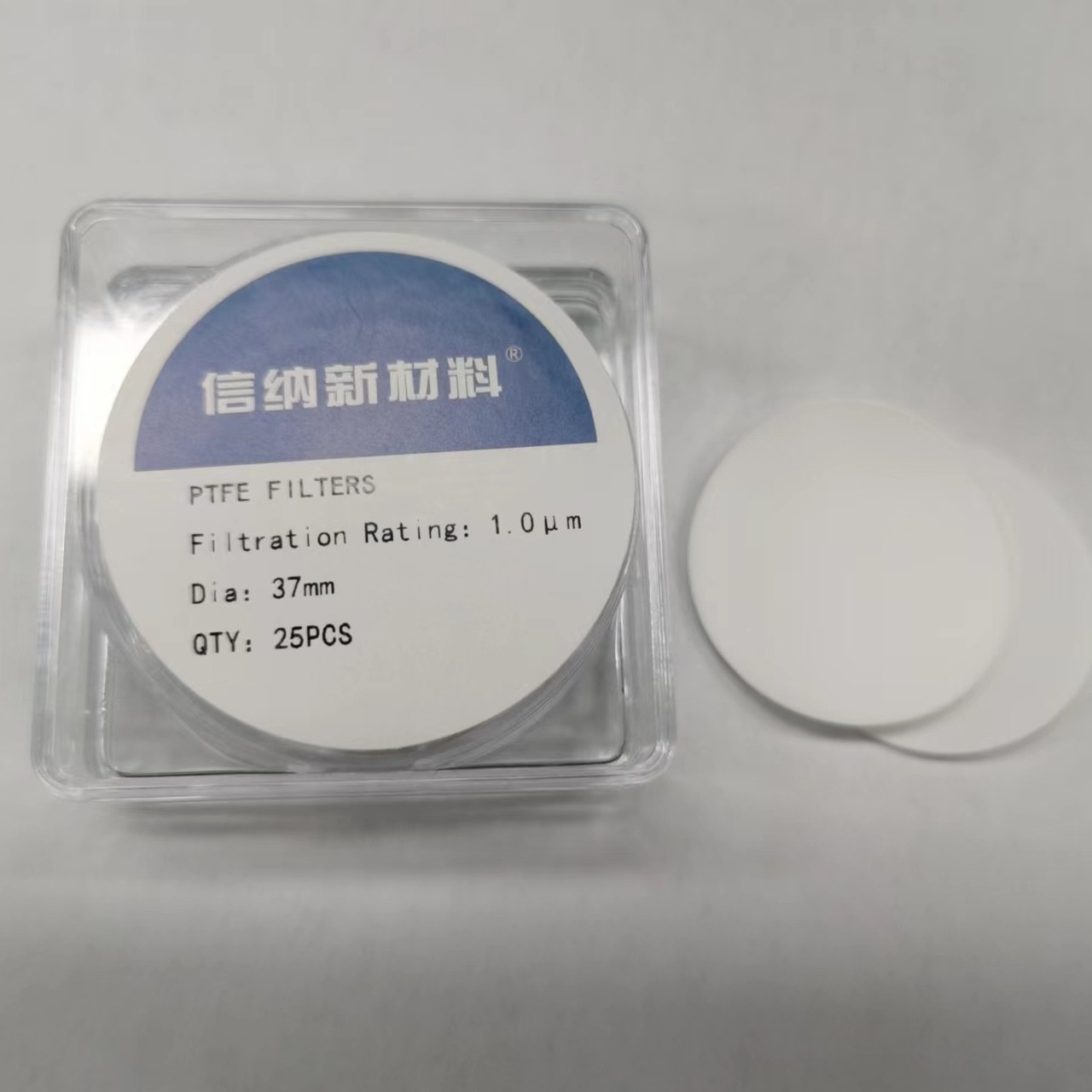

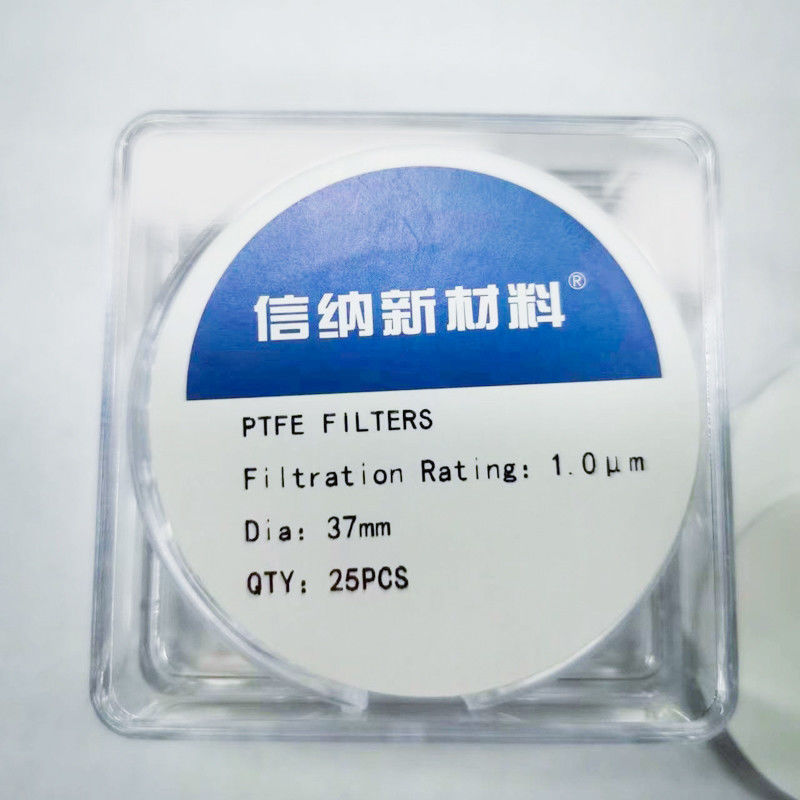

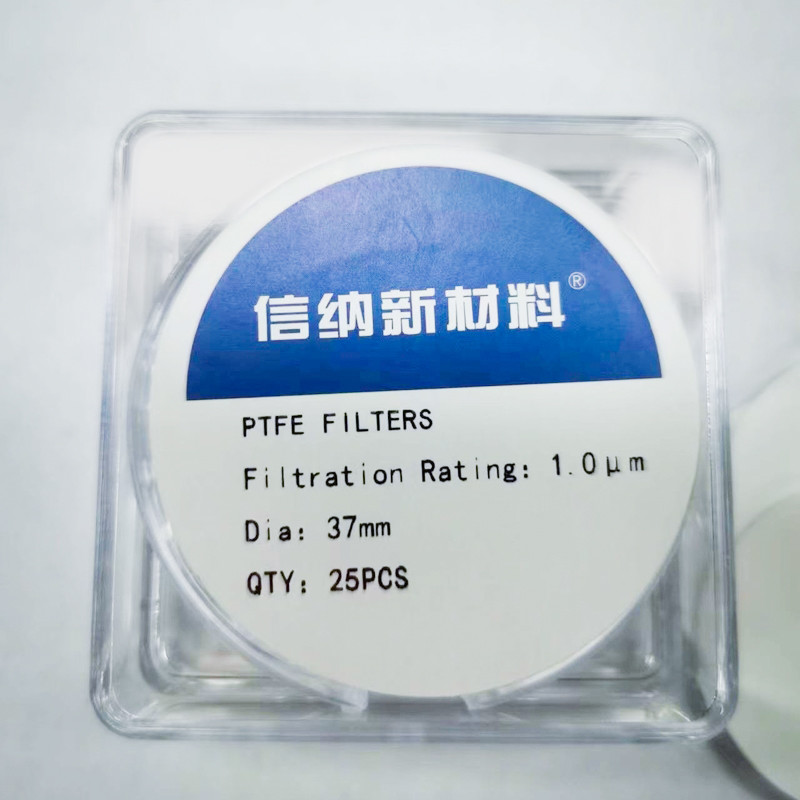

1.0um Hydrophilic PTFE Membrane Filter For Liquid Filtration In Laboratory Use

Product Details:
Place of Origin: China
Brand Name: No
Certification: ISO9001
Model Number: XN-PTFE
Payment & Shipping Terms:
Minimum Order Quantity: 200 pack(50pcs per pack)
Price: USD15.00-USD45.00 per pack
Packaging Details: 50 pcs/pack or standard export carton packaging or custom
Delivery Time: 25 to 30 days
Payment Terms: L/C, T/T
  • Detail Information
  • Product Description

Detail Information

Product Name: Hydrophilc PTFE Membrane Filter Material: 100% Polytetrafluoroethylene (PTFE) With PP Based Layer
Application: Laboratory Filtration Color: White
Pore Size: 1μm Diameter: 37mm,47mm, 50mm And More
Type: Nonsterile Package: 50pcs/pack
OEM: Available Certification: ISO9001, COA
Highlight:

1um PTFE Membrane Filter

,

Hydrophilic PTFE Membrane Filter

,

Laboratory PTFE Membrane Disc Filter

Product Description

Hydrophilic PTFE Membrane Filter for Laboratory 's liquid filtration

Polytetrafluoroethylene (PTFE) disc filters, are a type of filter membrane that exhibit chemical and biological inertness. This means that they are not affected by or react with chemicals or biological substances. They are stable up to 260°C, which is a high temperature that is well within the range of normal operating temperatures for many applications. PTFE membrane filters we offer is naturally hydrophobic and laminated with optional PP or PET supportive based layer, but we can make it into hydrophilic as customs 's demand . Hydrophobic PTFE membrabes are very useful for air venting, gas filtration and removal of aerosol comtaminants and hydrophilic ones are for liquid filtration with high flow rate and excellect filtration performance .They are manufactured through a patented process to form a high-porosity, uniformly thick and thermostable structure. Based layers are  PTFE PP or PET.It 's up to the thickness and special usage to choose different  supportive backing layer.



Specifications Available

Filter Material PTFE/PP
Membrane filter's Diameter 37MM
Pore Size 1.0μm
Wettability Customized hydrophilic
Application Liquid filtration in Lab
Thickness 0.21MM~0.23MM
Packaging 50pcs/pack

Features

  • Hydrophilic
  • High temperature and fire resistance
  • Superior chemical compatibility
  • Can withstand much higher pressure as compared with other types of filter membranes



Application

  • Lab liquid filtration
  • Aerosol sampling filtration
  • Organic solutions filtration
  • Bacterial suction filtration
