Lightproof Single Use IV Filter With Hydrophilic PES 0.2μm and Hydrophobic PTFE 0.2μm Non-sterile

Product Details:
Place of Origin: China
Brand Name: OEM avaliable
Certification: ISO9001
Model Number: XN-GLBC-X
Payment & Shipping Terms:
Minimum Order Quantity: 10000PCS
Price: $0.50-$0.70 per piece
Packaging Details: 250pcs per pack with label , 8packs per carton or customizable
Delivery Time: 30 days
Payment Terms: L/C, T/T
  • Detail Information
  • Product Description

Detail Information

Product Name: Lightproof Single Use IV Filter With Hydrophilic PES 0.2μm And Hydrophobic PTFE 0.2μm Non-sterile Pore Size: 0.22μm
Filter Media: PES & PTFE Filter Housing: ABS
Stop Liquid Height: ≥1.5Meter Inlet/Outlet Connections: Infusion Tube
Assembly Mode: Heat Melting Or Ultrasonic Welding Sterilization: Non-sterile/EOS
Type: X, Disposable Advantage: Automatic Liquid Stop
Color: Lightproof Orange Color
Highlight:

lightproof IV infusion filter

,

Hydrophilic PES 0.2μm filter

,

Adult liquid filter

Product Description

Lightproof Single Use IV Filter With Hydrophilic PES 0.2μm and Hydrophobic PTFE 0.2μm Non-sterile



The single in-line IV filter is designed foer use in filtration of intravenous for removal of particles larger than 0.22μm from liquids to ensure the purity and safety of a drug or biological sample. It‘s function is to filter out those particles that may have a negative impact on the final product, thus ensuring that the resulting liquid medicine or biological sample is of high quality and purity.



A Lightproof Infusion filter is a specialized medical device designed to protect light-sensitive medications and solutions during intravenous (IV) therapy. Light can degrade certain medications and substances, rendering them less effective or potentially harmful. These infusion sets are crafted with materials that prevent light exposure to the contents of the IV bag or container.



We XINNA 's single use IV filters are typically made of high-quality materials : double layers of PES membrane for drug liquid and PTFE membrane for air venting . These materials have good chemical compatibility and can withstand the corrosion of various chemicals and solvents. In addition, these materials also have high temperature resistance properties, which can maintain stable performance in high temperature environments.





Features :

  • Easy to connect to IV tubing sets with standard luer inlet and outlet slip
  • Precision filtration of fine particles
  • High retention efficiency
  • Four vents for faster automatic air venting
  • Automatic air-stop
  • Reduce risk of phlebitis and infusion pain

Characteristics:



Dimensions: 60*29.5*0.95mm(inlet/outlet connector included)
Weight: 8.2-8.8g
Filtration area: 10.5CM2
Venting area: 1.72CM2
Venting air flow rate: 25ml/min@5kpa
Max burst pressure: 360kpa(52.5psi)
Operating Temp: 5-40℃
Storage Temp: 0-50℃
Min water bubble point: 0.2μm≥360kpa
Min water flow rate: 0.2μm≥200ml/10min@10kpa
Sterilization: Ethlene Oxide(Max 60℃)





Applications:

  • Aqueous IV solutions
  • IV therapy
  • Chemotherapy
  • Nutrient admixture
  • Antibiotic therapy
  • Dialysate for kidney dialysis

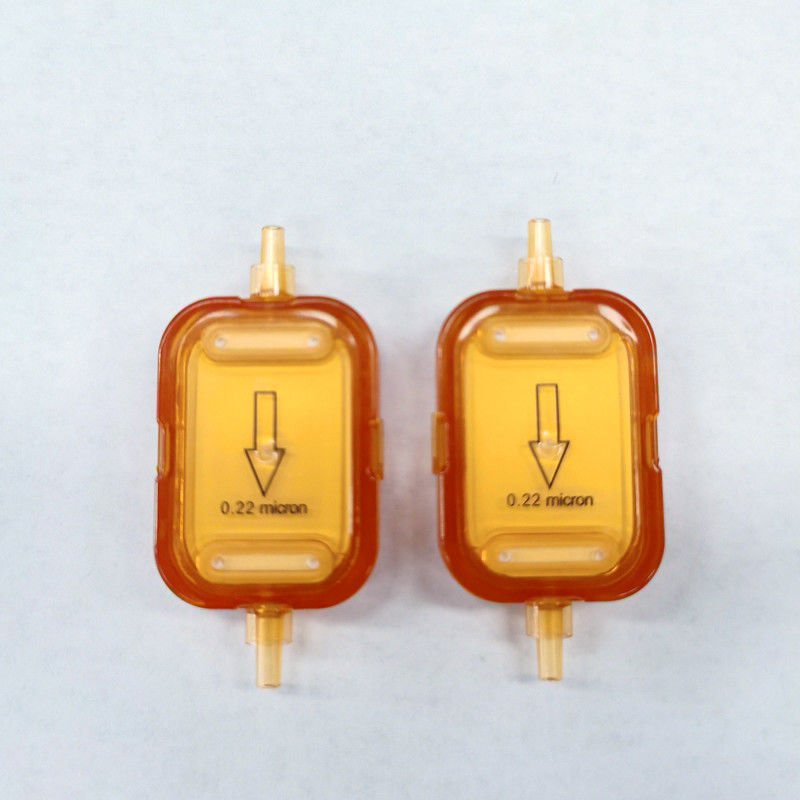

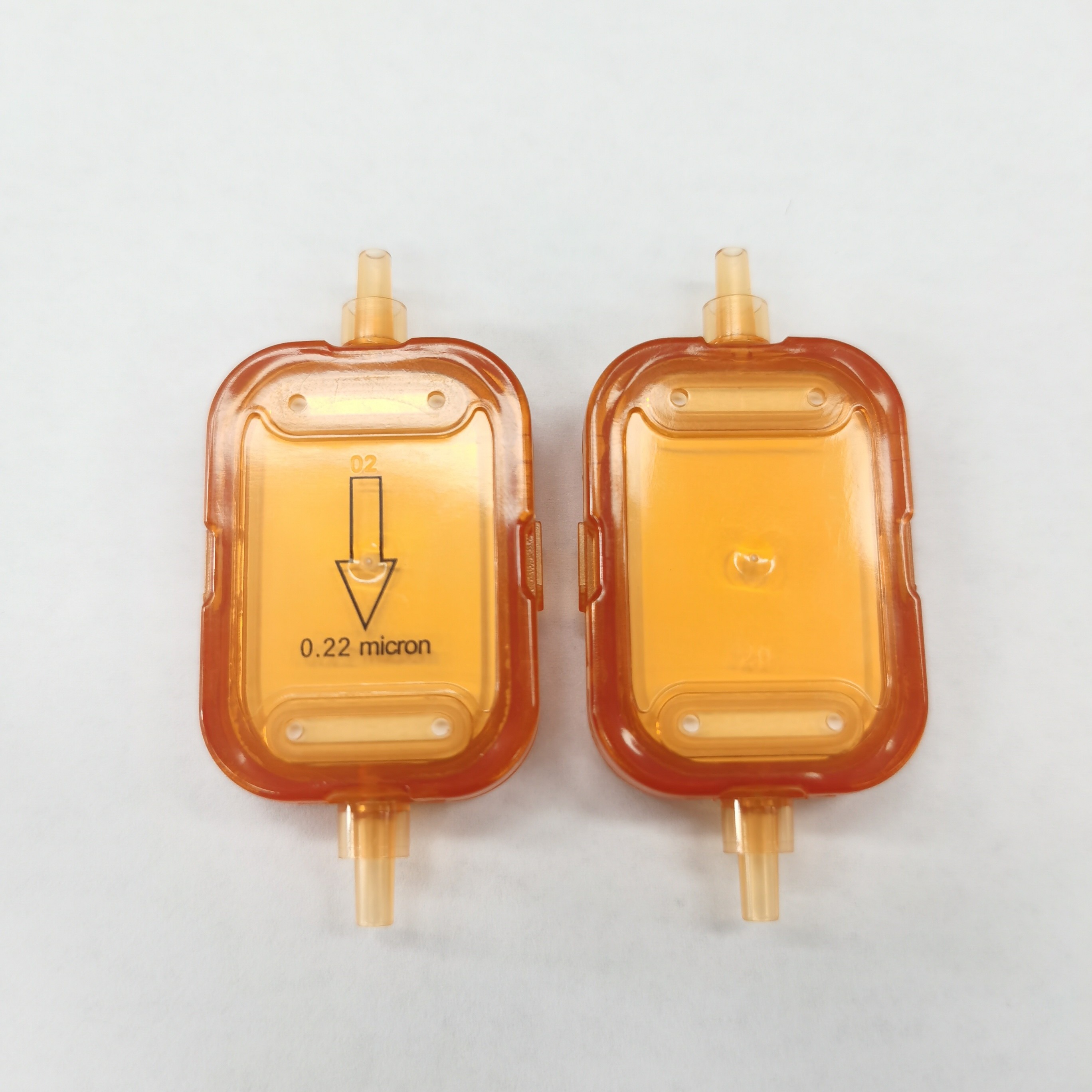

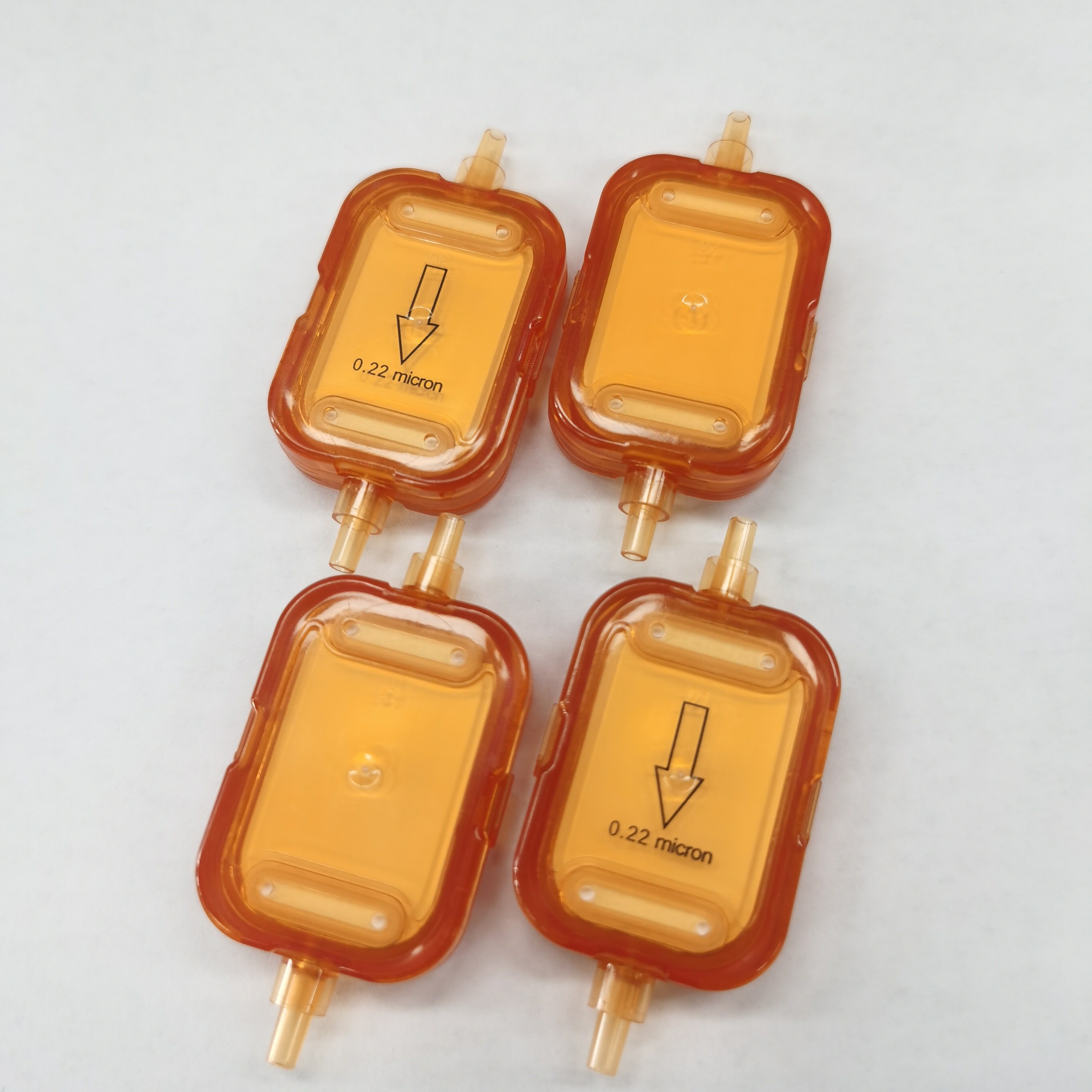

Lightproof Single Use  IV Filter With Hydrophilic PES 0.2μm and Hydrophobic PTFE 0.2μm Non-sterile 0
