EPTFE Vents Membranes For In-vehicle Electronics Navigation System Display System Communication Controller

Product Description

In-Vehicle Electronics: Navigation systems, display systems, communication controllers .

Compared to the exterior trim, chassis, and engine compartment of a car, the working environment for in-vehicle components is not as "harsh". As the development of intelligent car cabins, autonomous driving, and the automotive internet progresses, the number and precision of in-vehicle electronic devices are increasing. Different parts of the equipment have varying protection requirements. For example, the main control panel inside the vehicle needs venting membranes to balance pressure differences and dust-proof sound transmission membranes to convey sound, while the car's tailgate requires waterproof venting membranes. In-vehicle electronics, under long-term operation, face several risks:

•  Dust accumulation entering the housing, leading to device failure
• Temperature changes causing the device to operate under unbalanced pressure for extended periods, damaging the housing seal and thereby reducing protective capabilities.

The failure of in-vehicle electronics can also lead to severe consequences. Enhancing the reliability of in-vehicle electronics by installing breathable products is an economical and effective solution. These breathable solutions ensure waterproof and breathable performance while offering excellent stability, providing customers with peace of mind.

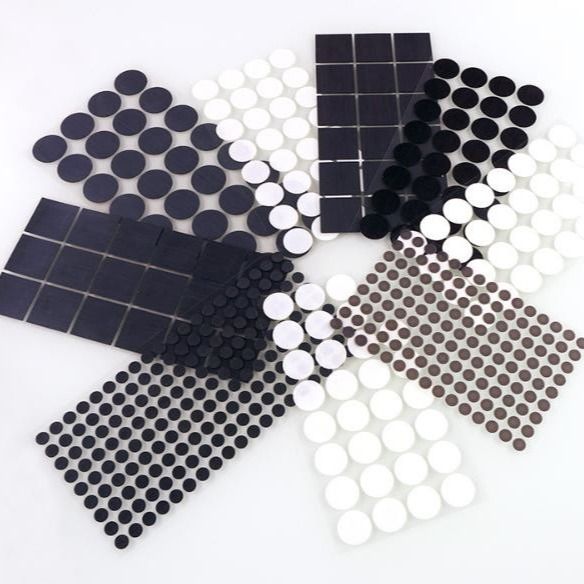

Xinna waterproof and venting products: ePTFE adhesive venting membrane ,  ePTFE welding membrane

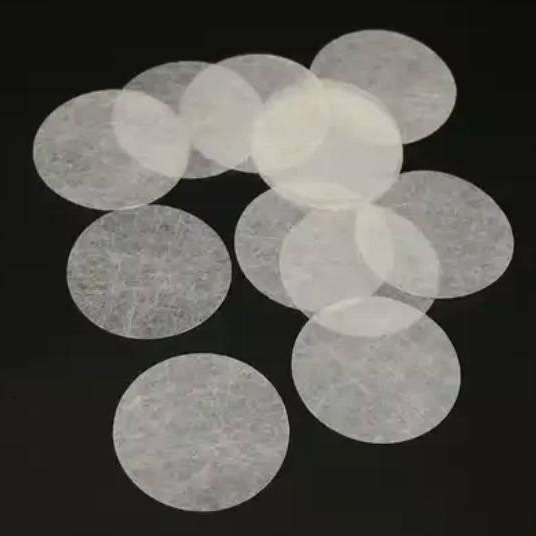

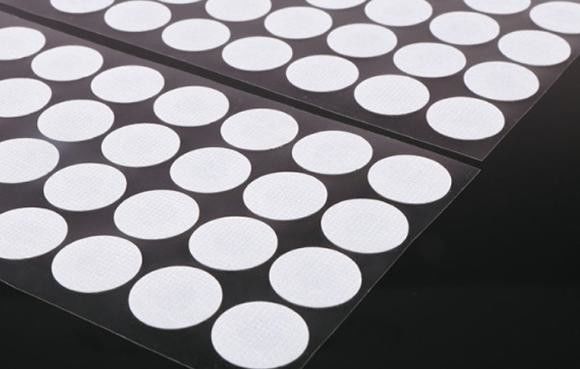

ePTFE adhesive venting membrane:

1. Simple installation, high breathability, customizable sizes according to customer requirements, effectively enhancing the operational stability and lifespan of in-vehicle electronic devices.
2. High breathability allows the equipment to effectively resist the impacts of temperature changes and altitude-induced pressure differences.
3. Excellent chemical stability ensures consistent performance.

Welding Membranes Characteristics:

1. Easy to weld, high protection level, high breathability, can effectively enhance the operational stability and lifespan of in-vehicle electronic devices.
2. Customizable sizes according to customer requirements, offering flexible design space for customers.
3. Welding process significantly affects the final protection level of the product; we can help customers precisely select models and determine welding parameters to achieve optimal welding results.

Product Installation and Instructions:

•  Ensure that the temperature of the waterproof breathable product and the housing is above 10°C.
• When handling waterproof breathable products, please wear gloves or use round-tipped tweezers to avoid direct contact with sharp objects.
• The installation surface should be clean, free from oil, particles, and other contaminants.
• The waterproof venting product should be installed on a flat, vertical surface to prevent liquids or other contaminants from accumulating.
• When using an automatic installation machine, follow the machine's instructions. For manual installation, roll the release paper underneath the waterproof venting product until it peels off easily for pickup.
• Avoid prying the product off the release paper or folding it, as this may damage the product. Waterproof Breathable Membrane .
