Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | No |
| Certification: | ISO9001 |
| Model Number: | PES-PET |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100 square meters |
| Price: | $25.00 - $30.00 per Square Meter , please contact sales |
| Packaging Details: | Roll packaging or standard export carton packaging |
| Delivery Time: | 15 to 30 days |
| Payment Terms: | L/C, T/T |
|
Detail Information |
|||
| Product Name: | Polyethersulfone (PES) Membrane | Material: | Polyethersulfone (PES) ,with PET As Supportive Layer |
|---|---|---|---|
| Pore Size: | 0.22μm/0.45μm/0.8~5μm | Wettability: | Hydrophilic |
| Filtration Efficiency: | ≥95% | Thickness: | 0.2-0.35MM |
| Stop Liquid Height: | ≥1.2M | Welding Method: | Heating Or Ultrosonic |
| Structure: | Asymmetric | Compatibility: | Acids, Alkalis, Solvents |
| Rolls Width: | 100~300MM | ||
| Highlight: | Medical Use Microporous Membrane,PET Supporting Layer Microporous Membrane,Rolls Microporous Membrane |
||
Product Description

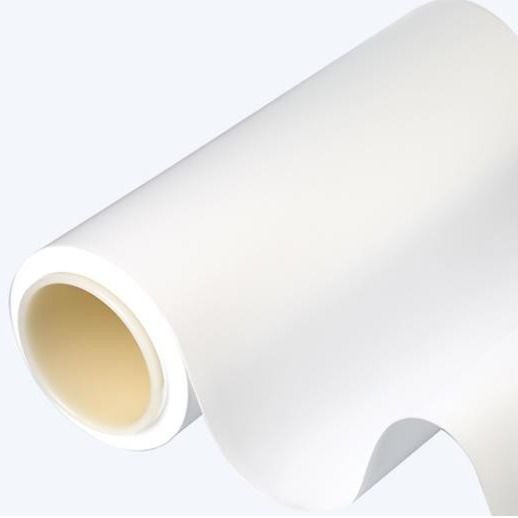

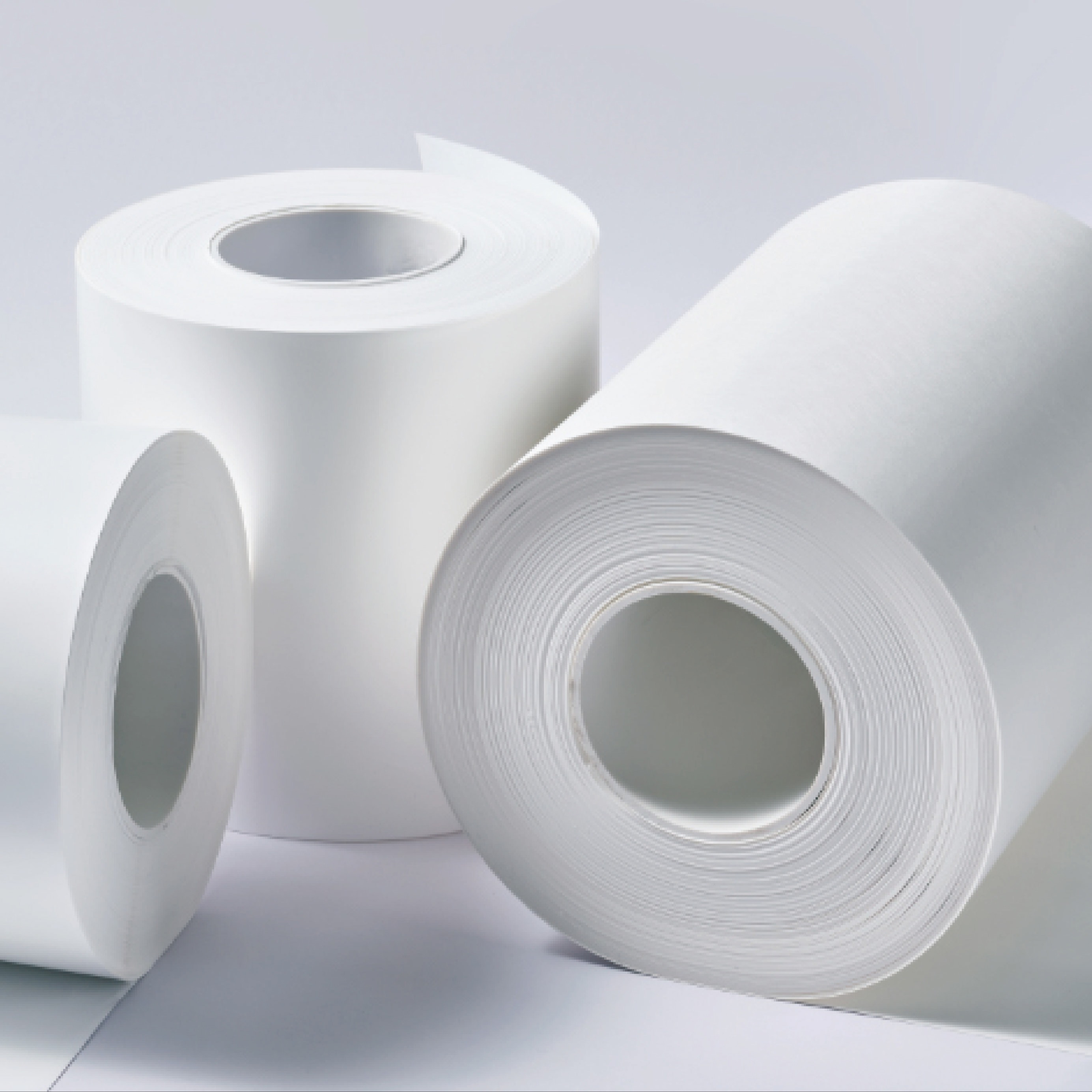

XINNA 's Genflow® PES microporous filtration membranes utilize an asymmetric structure with uniform openings. The material itself possesses excellent heat resistance, physical mechanical properties, and insulating performance. PES microporous filtration membranes feature low protein adsorption and low leaching during the filtration process.The produced filtration membranes have precise pore size control and reliable mechanical strength. All raw materials meet the standards and requirements of pharmaceutical-grade filtration membranes.
0.22μm Genflow® PES microporous
0.45μm Genflow® PES microporous
1.0μm Genflow® PES microporous
Product Advantages :
Specifications :
| NO. | PORE SIZE (μm) | TEST SOLUTIONS | BUBBLLE POINT (MPa) | FLOW RATE(ml/min/cm²) | THICKNESS (μm) |
| 1 | <0.1 | 60%IPA | 0.26~0.30 | ≥3 | 110 or customizable |
| 2 | 0.1 | 0.20~0.26 | ≥8 | ||
| 3 | 0.2 | Pure Water | 0.35-0.45 | ≥20 | |
| 4 | 0.45 | 0.25-0.35 | ≥45 | ||
| 5 | 0.80-5.00 | Standard | Standard |
*Bubble Point Test Membrane Selection: 1mm Porous Plate
*Test values may vary between different devices.
*Flow Rate Test: For pore sizes less than 1um, the transmembrane pressure difference is 70kPa; for 1um and above, the transmembrane pressure is 10kPa.

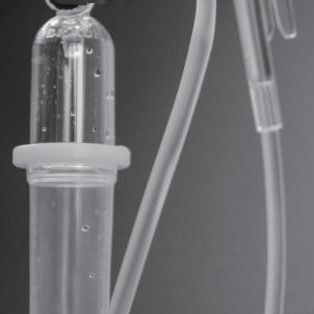

Medical Application :IV filter's self air-stop filtration membrane :
XINNA's IV and liquid filter membrane is made of PES, which inherently has low protein adsorptionand low extraction characteristics.
lts featured asymmetric structure allows high flow rate, filtration efficiency and dirt holding capacity.
A pioneering sulfonation treatment makes the hydrophilicity of our PEs more unifom which promises better hydrophilic performance and higher flow rates in gravity infusion applications as compared to conventional PES from other competitors.
Other applications
