Detail Information
Product Description

Detail Information
Product Name:	Syringe Filter	Diameter:	13mm/25mm/33mm
Filter Medium:	PP/PES/PTFE/Nylon	Pore Size:	0.22μm/0.45μm/1.2μm/2μm/3μm/5μm
Housing:	Polypropylene	Max. Operating Temperature:	60℃(140℉)
Sterilization:	ETO	OEM:	Available
Highlight:	0.22μm HPLC Sample Preparation Syringe Filter , PES HPLC Sample Preparation Syringe Filter , Disposable HPLC Sample Preparation Syringe Filter

Product Description

Disposable syringe filter body are typically made of polypropylene (PP) material, the membrane filter layer incorporated can be PES, PTFE, Nylon, or other filter media depending on specific purposes.In HPLC (High-Performance Liquid Chromatography), choosing the appropriate filter membrane depends on specific experimental conditions and the application of liquid chromatography.

Each material has its unique advantages and scope of application:

Filtration Media	Features	Applications
Nylon	◎Resistant to strong alkalis and organic solvents, naturally hydrophilic ◎No need for pre-wetting before use, uniform pore size, good mechanical strength ◎PH: 3-12	◎Suitable for both aqueous and organic phases ◎Alkali-resistant but not acid-resistant, with strong protein binding capacity, not recommended for filtration of protein-containing liquids.
MCE	◎Hydrophilic, low protein binding ◎Not resistant to strong acids, strong bases, or most organic solvents ◎PH: 4-8	◎Aqueous phase, limited pH tolerance range ◎Filtration of proteins in biological samples
PES	◎Hydrophilic, low protein binding ◎High flow rate, high porosity, high throughput ◎Not resistant to organic solvents and strong acid-base solutions ◎PH: 1-13	◎Suitable for filtration of biological media or serum, with fast filtration speed.
PTFE	◎Hydrophobic, resistant to strong acids, strong bases, and high temperatures ◎Suitable for filtration of highly corrosive solutions, organic solvents, and gases ◎PH: 1-14	◎Hydrophobic membrane filters organic phases ◎Hydrophilic membranes can be used for both aqueous and organic phases, with the strongest chemical compatibility, almost universally applicable;
PVDF	◎Low protein binding, ◎Not suitable for filtering highly corrosive liquids ◎Cannot withstand DMSO, THF, DMF, dioxane, chloroform, etc. ◎PH: 2-12	◎Suitable for general biological filtration
RC	◎Hydrophilic filter membrane, tolerant to most solvents ◎Compatible with HPLC solvents ◎Exhibits extremely low protein adsorption capacity ◎PH: 3-14	◎Filtration of aqueous or organic solvents ◎Protein recovery

The Syringe filters from us are ultrasonic welded to guarantee no liquid or gas leakage while being subjected to high pressure. No membrane replacement or filter cleaning is required, the single-use syringe filters are a great help to lab staffs freeing them from the trivial and time-consuming preparation, and therefore are widely embraced by laboratories across the world.Syringe filters are ideal for HPLC sample preparation and GC-MS Sample Preparation.

The PES syringe filters we produce contains high performance hydrophilic PES membrane filter. And the PES membranes are manufactured in our 100,000 class facilities, while the body of the syringe filters are manufactured just a few miles away in our new Injection Molding workshop.

The following are the parameters of one of the PES syringe filters

Filter Medium	PES
Membrane Diameter	33mm
Membrane Pore Size	0.22μm
Wettability	Hydrophilic
Filtration Area	4.90cm²
Sample volume	100~200ml
Max Operating Pressure	87psi
Max Operating Temperature	90℃
PH range	1-13
Connections(Inlet/Outlet)	Female Luer Lock inlet and Male Luer slip outlet

Features of PES syringe filters

Hydrophilic membrane
Very low adsorption for pharmaceuticals and proteins
Good stability against organic acids and bases
For aqueous and slightly organic liquids with higher flow rates
Mechanically very stable

Applications

Syringe filters are ideal for HPLC sample preparation and other applications:

HPLC/ GC-MS small volume sample preparation, purification and prefiltering.
Biological products preparation.
Culture medium, microbial medium, buffers, additives and drugs sample filtration.
Strong corrosive solvents purification.

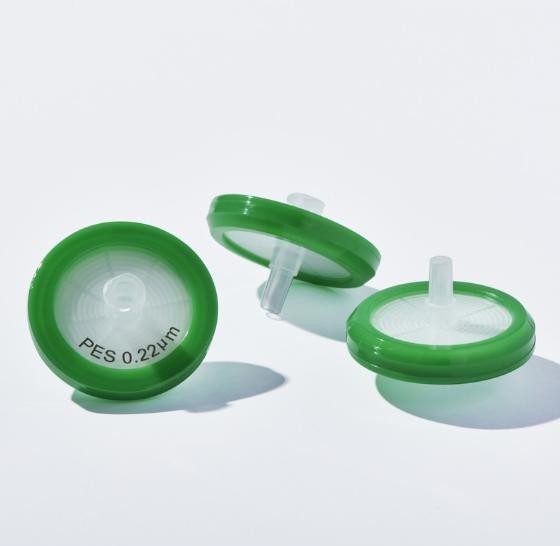

PES Syringe Filter For HPLC Sample Preparation Disposable 0.22μm Pore Size 0

Tag:

Product Details:
Place of Origin:	China
Brand Name:	Greenflow
Certification:	ISO9001
Model Number:	XNSFS
Payment & Shipping Terms:
Minimum Order Quantity:	300 packs
Price:	$6.00 to $15 per pack,please contact sales for price
Packaging Details:	100 pcs/pack ,standard export carton packaging or custom
Delivery Time:	15 to 30 days
Payment Terms:	L/C, T/T

PES Syringe Filter For HPLC Sample Preparation Disposable 0.22μm Pore Size

0.22μm HPLC Sample Preparation Syringe Filter

PES HPLC Sample Preparation Syringe Filter

Disposable HPLC Sample Preparation Syringe Filter

HPLC Sample Preparation
