Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | No |
| Certification: | ISO9001 |
| Model Number: | XN-GF |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 600 square meters |
| Price: | $7 per square meter |
| Packaging Details: | Roll packaging or standard export carton packaging |
| Delivery Time: | 15 to 30 days |
| Payment Terms: | L/C, T/T |
|
Detail Information |
|||
| Product Name: | Glass Fiber Membrane | Material: | Pure Borosilicate Glass Fiber |
|---|---|---|---|
| Color: | White | Pore Size: | 0.7μm To 20μm |
| Wettability: | Hydrophobic | Type: | Rolls, Sheets, Discs |
| Filtration Efficiency: | Up To 99% | Max Operating Pressure: | 16 KPa |
| Highlight: | 0.7µm Glass Fiber Membrane,White Glass Fiber Membrane,Hydrophobic Glass Fiber Filter Without Binder |
||
Product Description

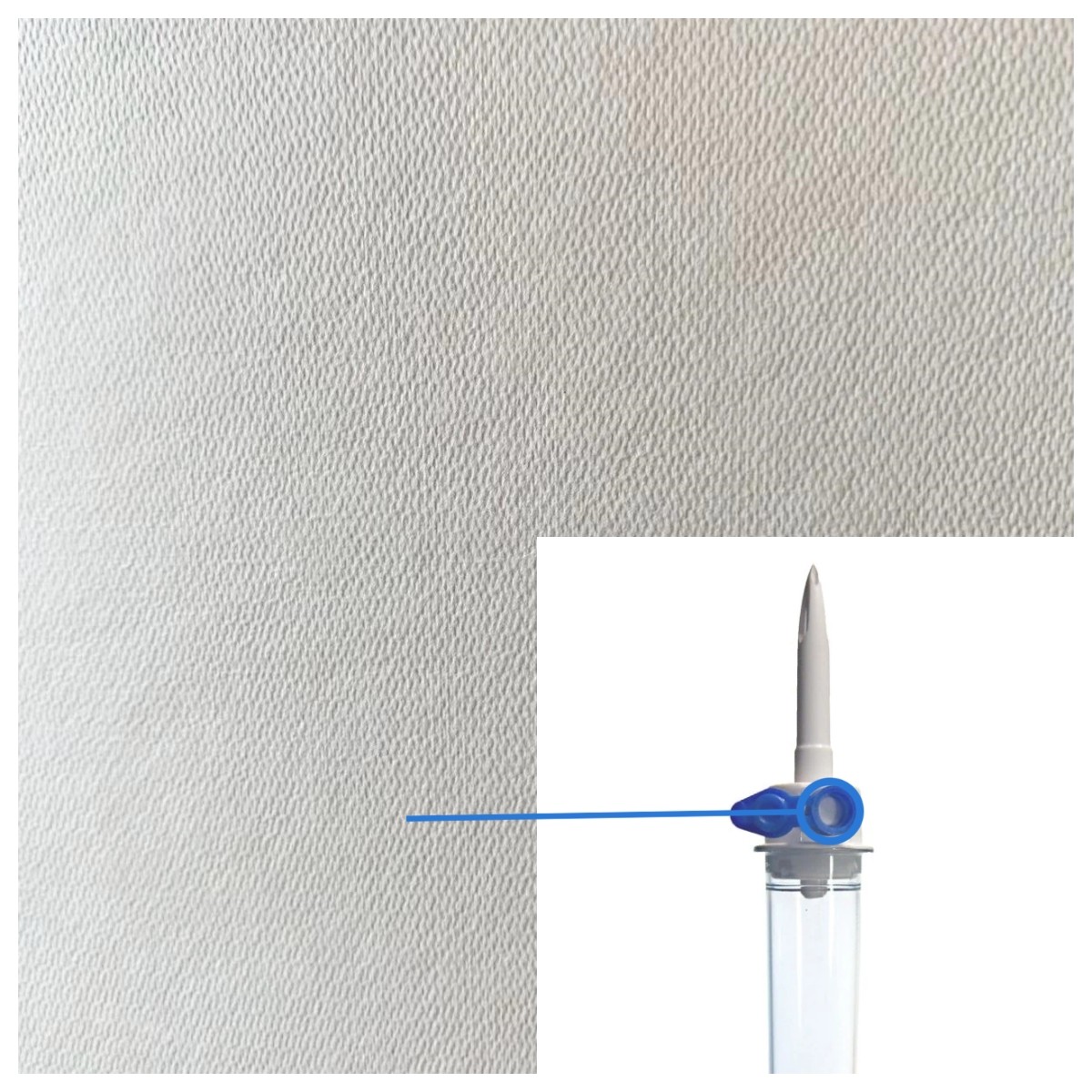

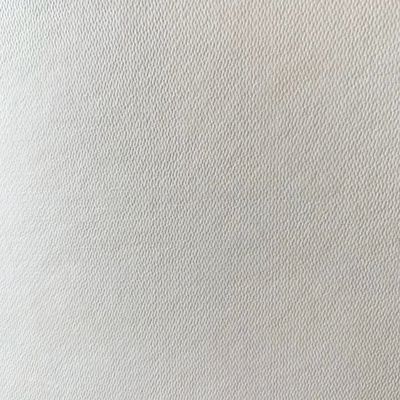

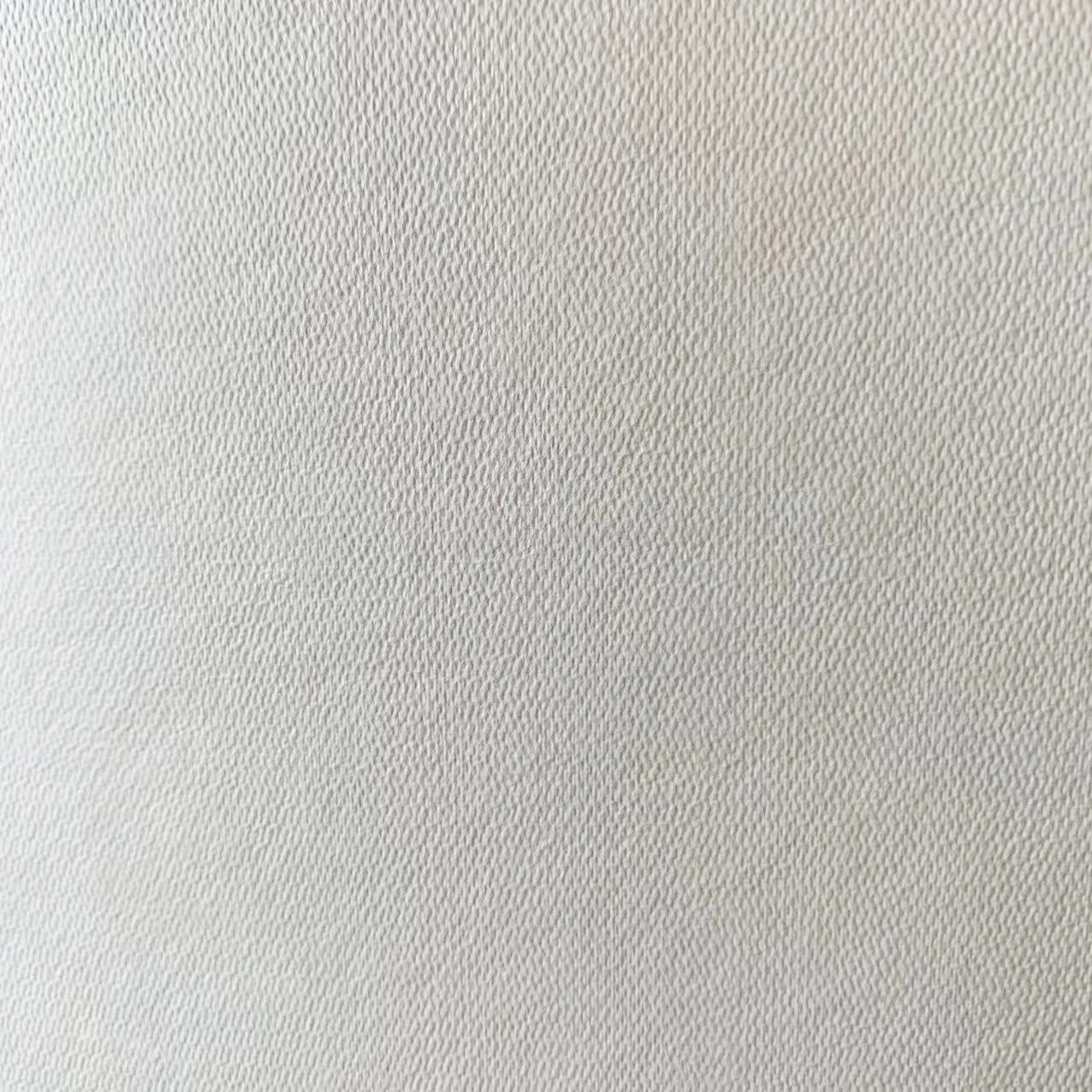

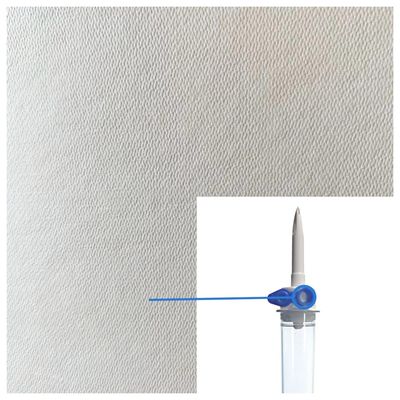

0.7μm Hydrophobic Glass Fiber Membrane Filter Without Binder
Our Glass Fiber membrane filters are made of pure borosilicate glass fiber material without binder, and available in a wide range of flow rates and throughput capacities. GF membrane is naturally hydrophilic but after undergoing specialized treatment in production, it could become hydrophobic and reach high levels of gas permeability which can allow for fast pressure equalization and airflow. For instance, in IV lines, glass fiber filter helps in the dissipation of these gas bubbles. In addition to air venting, glass fiber membrane can also be used to protect equipment from microbial contamination during use. Due to the microporous structure of our glass fiber membranes, the protective membrane allows sterile gas to pass through with low pressure drop while providing a barrier to aerosolized liquids and particles. These binder-free glass fiber membrane Filters also have remarkable chemical stability, which ensures that it can withstand harsh chemicals and maintain its performance over extended periods without degrading. The GF filter also exhibits exceptional temperature resistance, making it suitable for use in various applications where high temperatures may be present.
When it comes to pore size and formats, the glass fiber membrane filters from XINNA are available in a wide range of options to cater to different applications. The available pore sizes include 0.7μm, 1.2μm, 3μm, 5μm, 10μm, and 15μm. Formats can be cut-to-size rolls, flat sheets and discs. Alternatively, custom pore sizes and formats can also be manufactured to meet specific requirements and specifications.
Features
Specification
| Product Name | Glass Fiber Membrane |
| Material | Pure borosilicate glass fiber |
| Pore Size | 0.7μm to 20μm |
| Flow Rate@23 °C, H2O | ≧181mL/cm2.min@1 bar(0.45 μm) |
| Thickness | 350 – 400 μm |
| Maximum Operating Pressure | 4.2 bar@23 °C |
Applications
Medical grade hydrophobic glass fiber membrane filters we supply is the material of choice for air venting and gas sterilization applications including,
