Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | No |
| Certification: | ISO9001 |
| Model Number: | XN-GF |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 600 square meters |
| Price: | $7 per square meter |
| Packaging Details: | Roll packaging or standard export carton packaging |
| Delivery Time: | 15 to 30 days |
| Payment Terms: | L/C, T/T |
|
Detail Information |
|||
| Product Name: | Glass Fiber Membrane | Material: | Pure Borosilicate Glass Fiber |
|---|---|---|---|
| Color: | White | Pore Size: | 0.7μm To 20μm |
| Wettability: | Hydrophobic | Type: | Rolls, Sheets, Discs |
| Filtration Efficiency: | Up To 99% | Max Operating Pressure: | 16 KPa |
| Highlight: | 1.2 µm Glass Fiber Filter,Binderless Glass Fiber Filter |
||
Product Description

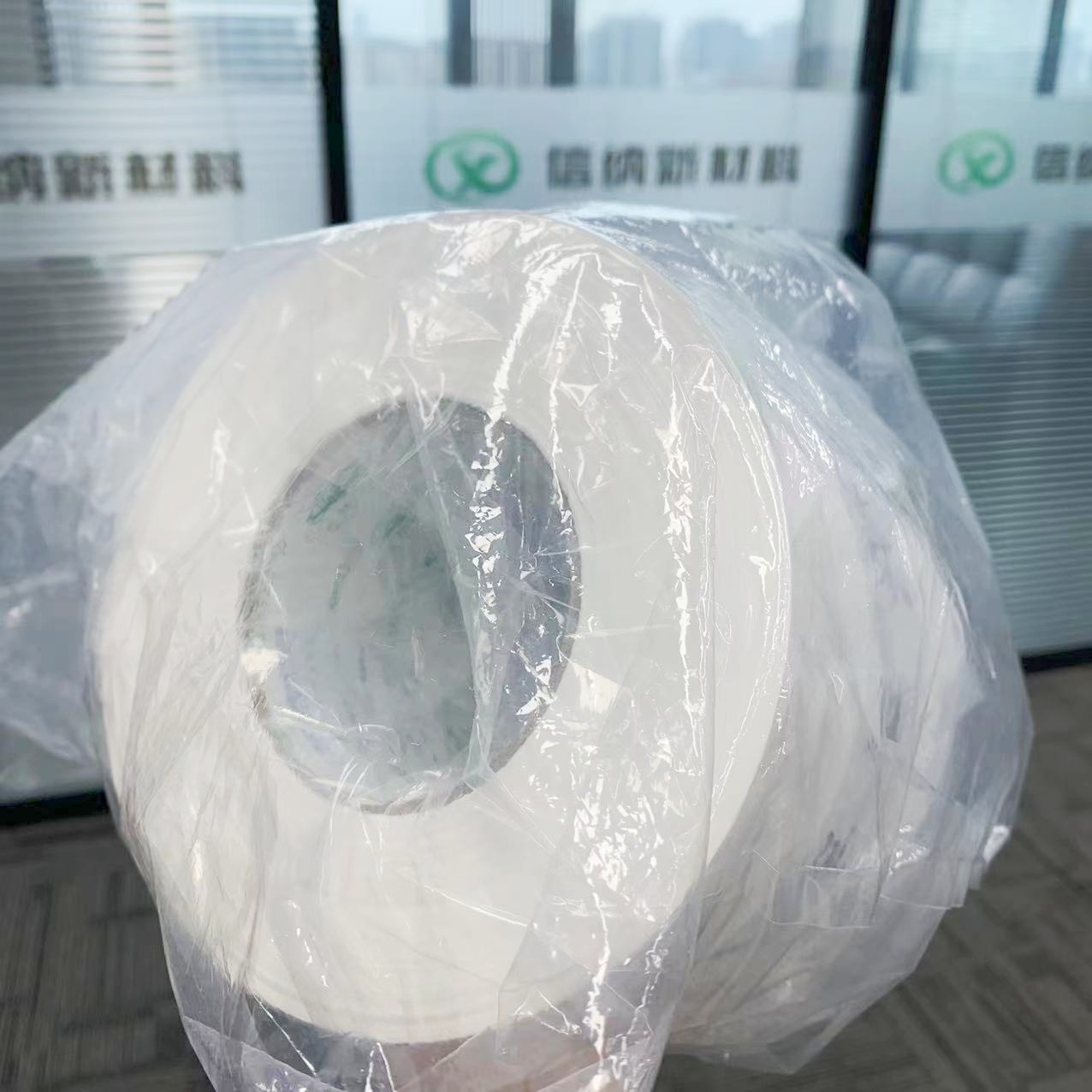

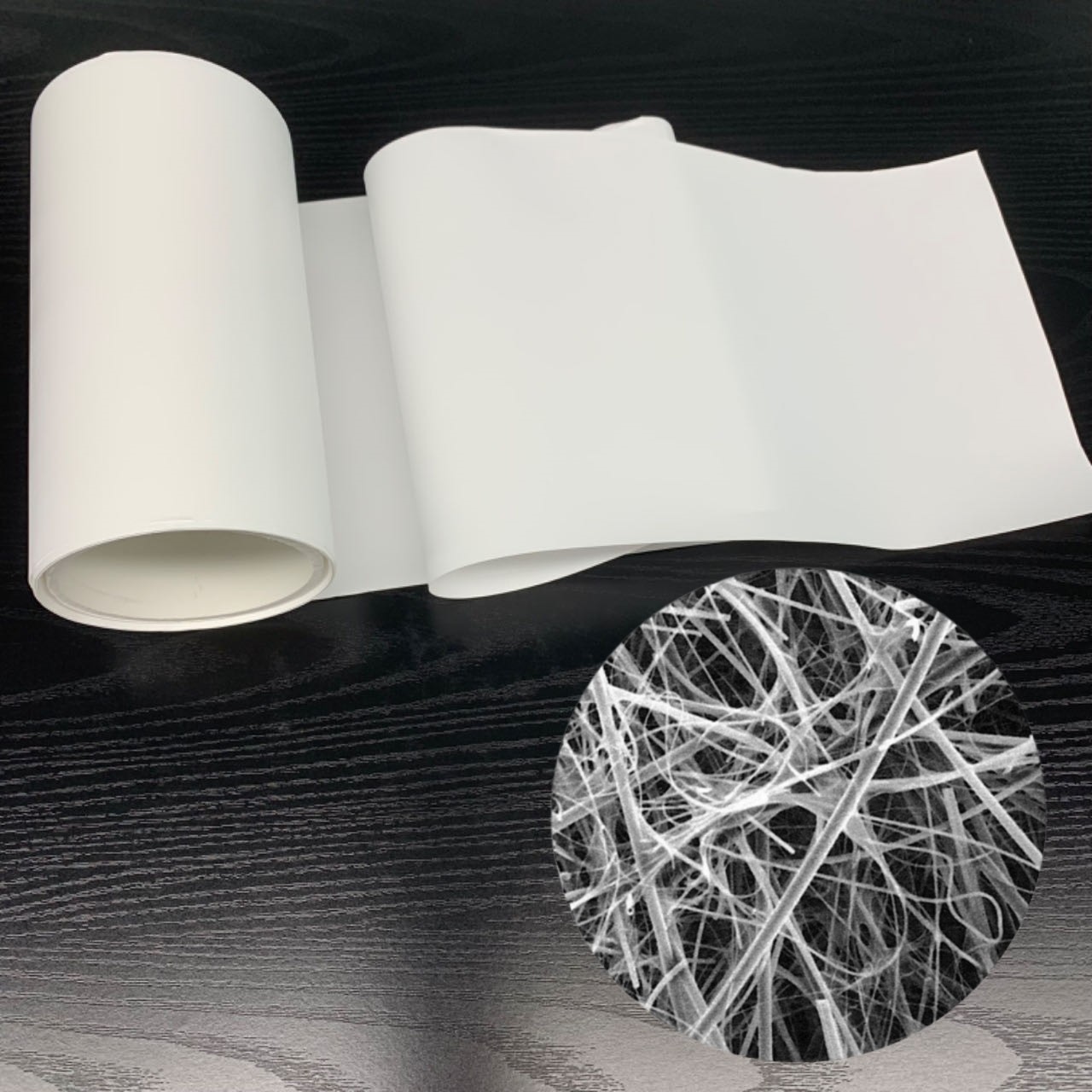

1.2 µm Binderless Glass Fiber Filter Medical Grade Venting Membrane
Glass fiber membrane filters from XINNA are manufactured in our 100,000 grade cleanrooms, ensuring maximum safety and quality of the products. These GF filters are produced without the use of any binders, and well suited for medical industry applications. Made of pure borosilicate glass fiber material, GF membrane filters has excellent thermal stability, allowing them to withstand high temperatures without compromising their performance. This makes them suitable for use in a variety of high-temperature working applications. Glass fiber membrane filters we supply are treated into hydrophobic type which enables gas to pass through with low pressure drop while providing a barrier to aerosolized liquids and particles. Hydrophobic glass fiber membrane is an excellent choice for clients who are looking for a reliable and cost-effective solutions for air venting and gas sterilization. We understand that different industries have varying filtration requirements, which is why we offer a wide range of pore sizes and formats to suit various needs, and we are committed to providing tailored solutions that meet your specific requirements, even for small orders, customized OEM services is acceptable.
Features
Specifications
| Product Name | Glass Fiber Membrane |
| Material | Pure borosilicate glass fiber |
| Pore Size | 0.7μm, 1.2μm, 3μm, 5μm, 10μm, and 15μm |
| Flow Rate@23 °C, H2O | ≧181mL/cm2.min@1 bar(0.45 μm) |
| Thickness | 350 – 400 μm |
| Maximum Operating Pressure | 4.2 bar@23 °C |
| Formats | Rolls, flat sheets, discs |
Applications
Hydrophobic glass fiber membrane filters from us are medical grade with proven performance. It is a rather cost-effective solution and highly recommended for air venting and gas sterilization applications including,
