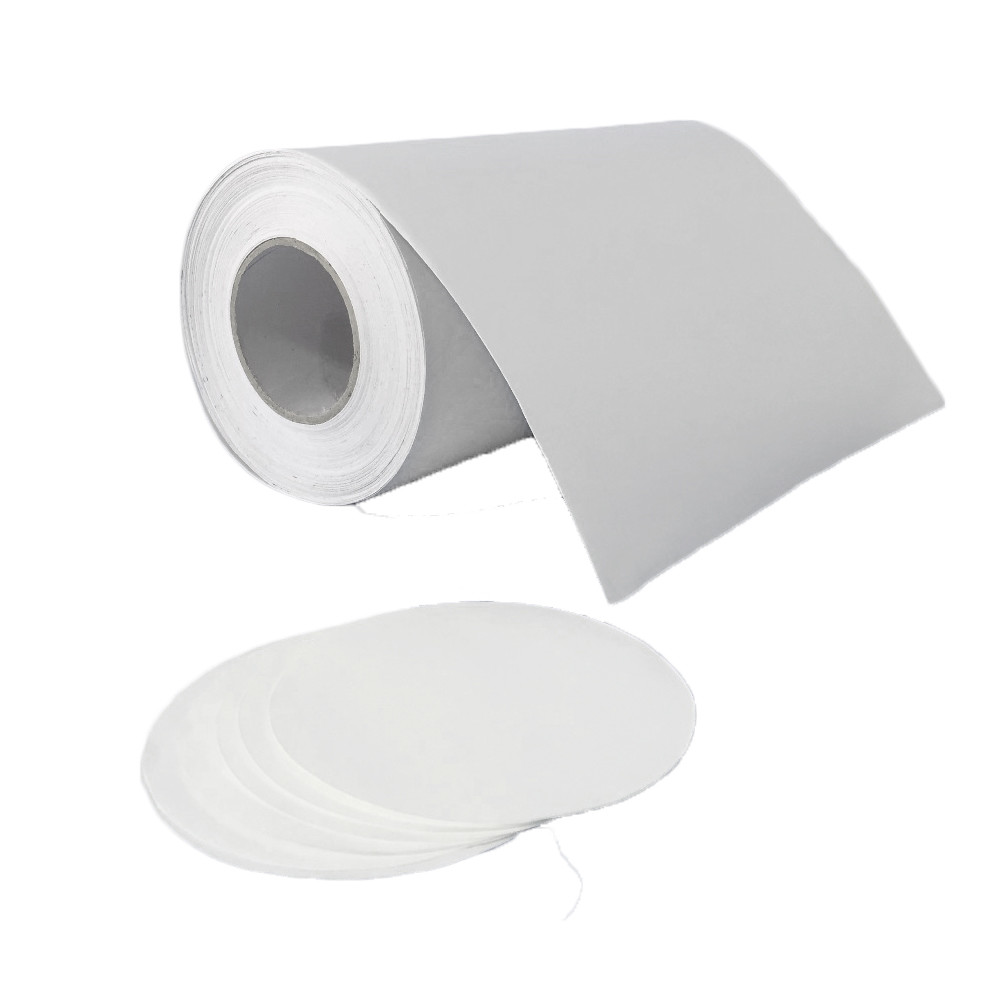

Hydrophobic PTFE Venting Membrane Lab Filter Membranes For IV Filters

Product Details:
Place of Origin: China
Brand Name: No
Certification: ISO9001
Model Number: XN-PTFE
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meters
Price: $45 - $80 per square meter
Packaging Details: Roll packaging or standard export carton packaging
Delivery Time: 15 to 30 days
Payment Terms: L/C, T/T
  • Detail Information
  • Product Description

Detail Information

Product Name: PTFE Membrane Material: 100% PTFE
Pore Size: 0.2um-20um Width: 100mm To Max.1100mm
Wettability: Hydrophobic Flow Rate: High
Chemical Resistance: Excellent Filtration Efficiency: 99%
Highlight:

Hydrophobic PTFE Venting Membrane

,

Lab PTFE Venting Membrane

Product Description

Hydrophobic PTFE Venting Membrane Lab Filter Membranes PTFE for IV filters

PTFE membranes are a naturally hydrophobic filter material. It works as a barrier to keep fluid confined while allowing air and gas to pass through smoothly. PTFE venting membranes can be used in a variety of medical applications such as vents on IV infusion sets, or as filter media of transducer protectors. It beats the other types of membrane filters when it comes to the combined performance of venting, hydrophobic and oleo-phobic.



XINNA is an ISO Certified high-tech enterprise dedicated to manufacturing, supplying and sales of membrane filters since 1994. The PTFE membranes are produced in our Class 100,000 clean-room and each and every bulk were tested our laboratories before packaging and delivery, safety and quality guaranteed. PTFE membranes from us can be offered in various pore size and cut-to-size rolls, sheets and discs up to your choice.



Features

  • Hydrophobic
  • High air flow rate
  • High pressure resistance
  • High mechanical strength
  • Excellent resistence to strong acids, bases and solvents
  • Superior thermal resistance
  • Lot-to-lot quality consistency



Specifications

Product name Hydrophobic PTFE Membrane
Material Polytetrafluoroethylene
Thickness 30-50um
Color White
MOQ 300㎡
Width ≤1.1m
Pore size 0.22/ 1.2/ 2/ 3/ 5um
Bubble point pressure ≥0.18Mpa
Flow speed ≤10s
OEM Available



Applications

PTFE membrane has a versatile range of applications, the naturally hydrophobic membrane are commonly used in

  • IV infusion sets
  • Transducer protectors
  • HPLC sample preparation
  • Aerosol sample handling
  • Air venting and gas filtration
  • Special corrosive solvents filtration
