Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | No |
| Certification: | ISO9001 |
| Model Number: | XN-PTFE |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 600 Square Meters |
| Price: | $45 - $80 per square meter |
| Packaging Details: | Roll packaging or standard export carton packaging |
| Delivery Time: | 15 to 30 days |
| Payment Terms: | L/C, T/T |
|
Detail Information |
|||
| Product Name: | PTFE Membrane | Material: | 100% PTFE |
|---|---|---|---|
| Pore Size: | 0.22 μm-20 μm | Width: | 10mm To Max.1100mm |
| Wettability: | Hydrophobic | Flow Rate: | High |
| Chemical Resistance: | Excellent | Filtration Efficiency: | 99% |
| Highlight: | Venting PTFE Membrane,Sterile PTFE Membrane,PTFE Sterile Membrane Filters |
||
Product Description

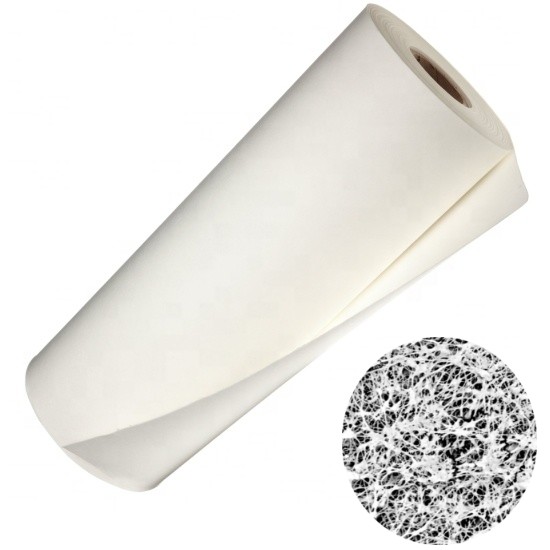

Sterile Venting PTFE Membrane Filters with Optional Support Backing
PTFE membranes are used in a variety of healthcare applications such as the venting in IV filters,spike vents and transducer protectors, protecting medical devices, equipments and sensors from fluids , aqueous aerosols and contamination.
PTFE membranes are naturally hydrophobic with excellent chemical resistance, making them the ideal choice for sterile venting of air and gases, non-aqueous solvents, acids, and aggressive fluids. In the biotech and pharmaceutical industry, PTFE membranes are used in filtration of strong acids and aggressive solutions, venting of gases. PTFE membrane filters are also used for the filtration of corrosive solvents and acids, to which other filter types are not resistant because of its excellent chemical compatibility with pH tolerance ranging from 1 to 14.
We offer PTFE membranes without support which has superior thermal stability,specifications as following,
| PTFE without support | 0.10 µm | 0.22 µm | 0.45 µm | 0.80 µm | 1.0 µm | 3.0 µm |
| Flow Rate (air) (L/min/cm2) | 0.5 | 2 | 3 | 5 | 6 | 25 |
| Bubble Point | >17.4 psi | >13.2 psi | >9.1 psi | >5.7 psi | >4.5 psi | >1.9 psi |
| Thickness | 90 µm | 90 µm | 90 µm | 75 µm | 75 µm | 75 µm |
| Max. Operating Temp | 260°C | 260°C | 260°C | 260°C | 260°C | 260°C |
We also manufacture PTFE membranes with optional support backing for improved handling,specificatons as following,
| PTFE with support backing | 0.10 µm | 0.20 µm | 0.45 µm | 1.0 µm |
| Flow Rate (air) (L/min/cm2) | 2.5 | 4.5 | 7.5 | 17 |
| Bubble Point | >20.3 psi | >14.1 psi | >8.5 psi | >4.3 psi |
| Thickness | 130 µm | 130 µm | 120 µm | 90 µm |
| Max. Operating Temp | 130°C | 130°C | 130°C | 130°C |
Features
Applications
PTFE membrane has a versatile range of applications and are commonly used in
