Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | No |
| Certification: | ISO9001 |
| Model Number: | XN-PTFE |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 600 Square Meters |
| Price: | $45 - $80 per square meter |
| Packaging Details: | Roll packaging or standard export carton packaging |
| Delivery Time: | 15 to 30 days |
| Payment Terms: | L/C, T/T |
|
Detail Information |
|||
| Product Name: | PTFE Venting Membrane | Material: | 100% PTFE |
|---|---|---|---|
| Pore Size: | 0.22 μm-20 μm | Width: | 10mm To Max.1100mm |
| Wettability: | Hydrophobic | Flow Rate: | High |
| Chemical Resistance: | Excellent | Filtration Efficiency: | 99% |
| Highlight: | PTFE Filter Membrane 0.45 μm,Venting PTFE Filter Membrane,Hydrophobic PTFE Filter 0.45 μm |
||
Product Description
0.45 μm PTFE Filter Membrane For Venting and Gas Filtration 100mts/Roll
PTFE membrane is a highly specialized membrane filter that boasts several unique features, making it an ideal choice for a wide range of applications, whether it is controlling contaminants, maintaining temperature stability, or enhancing air flow rate, PTFE membrane provides an efficient and effective solution to meet diverse requirements.
One of the most notable characteristics of PTFE membrane is its hydrophobic and oleophobic nature. This property allows it to repel water and oils, making it highly resistant to contamination and moisture intrusion, and provide a high air flow rate allowing for efficient gas venting. Another significant advantage of PTFE membrane is its high mechanical strength. This means that it can withstand significant pressure and stress without breaking or degrading over time. This makes it ideal for use in demanding environments where durability and reliability are critical. PTFE membrane also offers excellent chemical and thermal resistance. It can resist a wide range of chemicals and temperatures, ensuring that it remains functional and stable over extended periods. This makes it suitable for use in various industrial and commercial settings where exposure to harsh chemicals and extreme temperatures is common. One of the most valuable features of PTFE membrane is its ability to control contaminants. It effectively filters out impurities and pollutants, maintaining the cleanliness and purity in medical and healthcare applications. Additionally, it provides moisture control, preventing the entry of moisture into the system, thereby reducing the risk of mold growth or corrosion. PTFE membrane filters are also used for the filtration of corrosive solvents and acids, to which other filter types are not resistant because of its excellent chemical compatibility with pH tolerance ranging from 1 to 14.

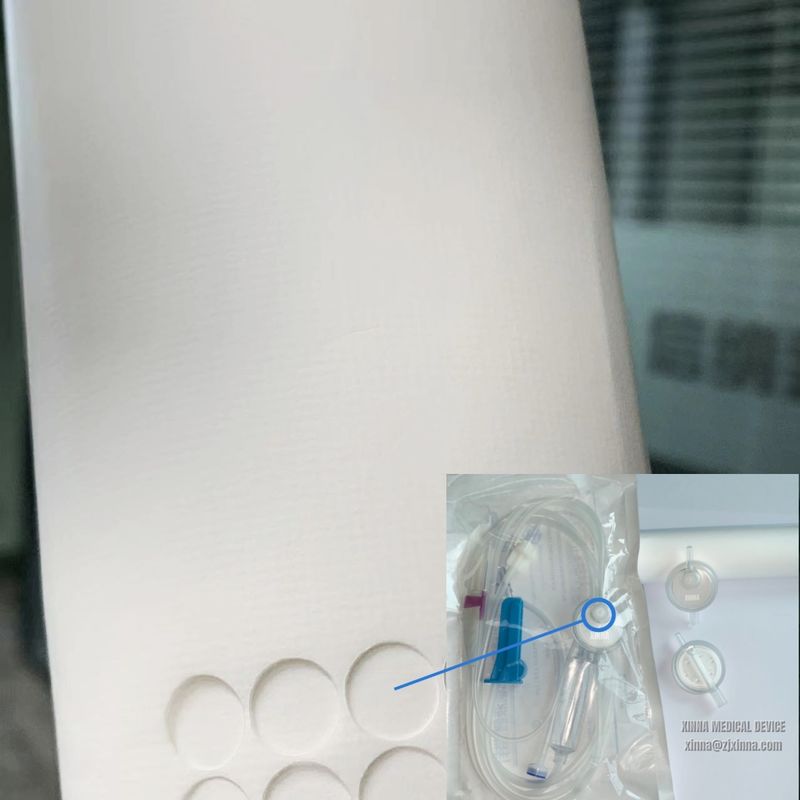

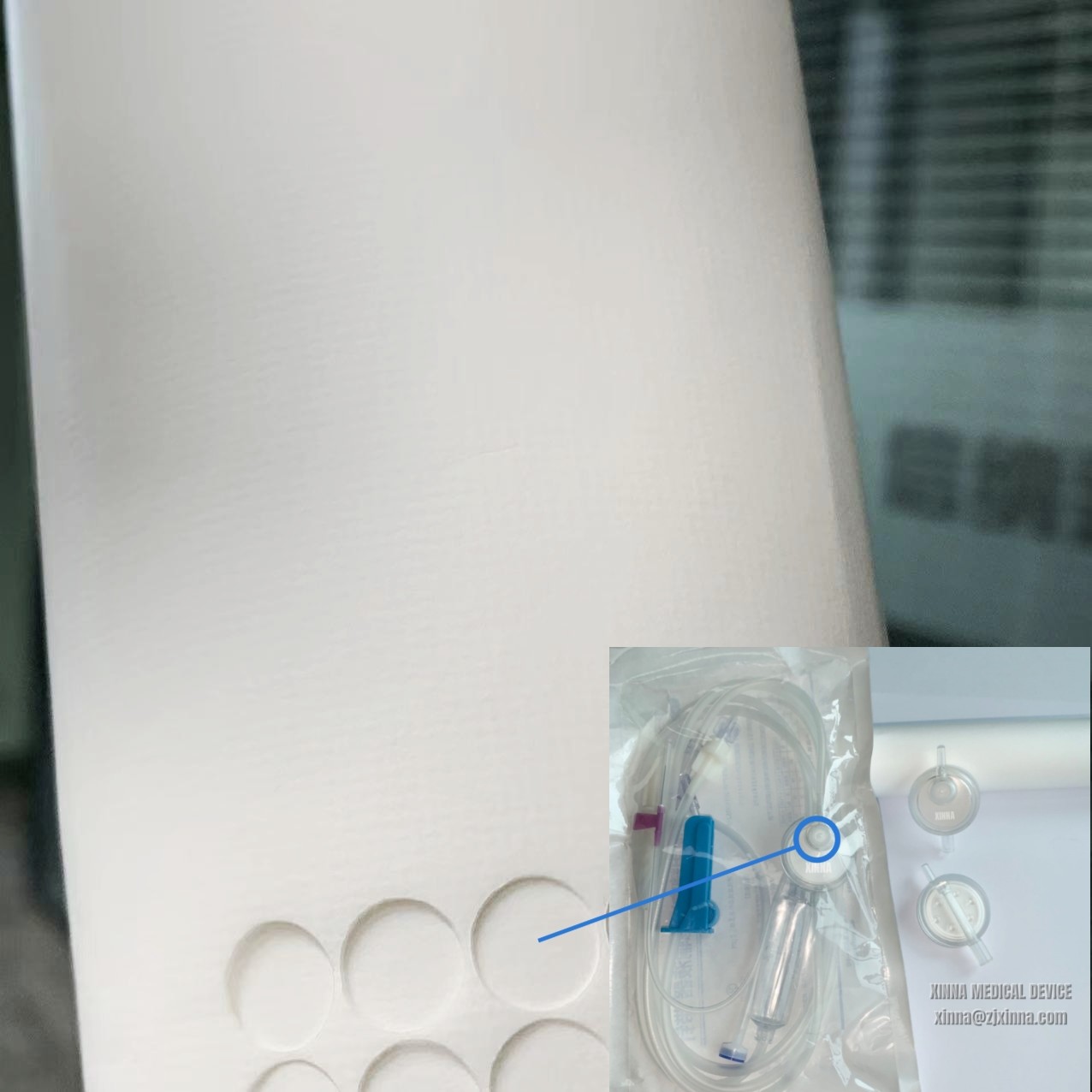

PTFE membranes from XINNA can be customized to fit specific needs, ensuring optimal coverage and efficiency across different applications. And PTFE membranes from us have been mostly used in a variety of healthcare applications such as the venting in IV filters,spike vents and transducer protectors, and other laboratory filter devices like syringe filters.
Specifications Available
| PTFE with support backing | 0.10 µm | 0.22 µm | 0.45 µm | 1.0 µm |
| Flow Rate (air) (L/min/cm2) | 2.5 | 4.5 | 7.5 | 17 |
| Bubble Point | >20.3 psi | >14.1 psi | >8.5 psi | >4.3 psi |
| Thickness | 130 µm | 130 µm | 120 µm | 90 µm |
| Max. Operating Temp | 130°C | 130°C | 130°C | 130°C |
Features
Applications of PTFE membranes
